(Copy) (Copy)Premade doy pack pouch powder packaging machine long long long long long long title
(Copy) (Copy)Premade doy pack pouch powder packaging machine long long long long long long title - Image 2
(Copy) (Copy)Premade doy pack pouch powder packaging machine long long long long long long title - Image 3
(Copy) (Copy)Premade doy pack pouch powder packaging machine long long long long long long title - Image 4
(Copy) (Copy)Premade doy pack pouch powder packaging machine long long long long long long title - Image 5
(Copy) (Copy)Premade doy pack pouch powder packaging machine long long long long long long title - Image 6

(Copy) (Copy)Premade doy pack pouch powder packaging machine long long long long long long title

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed consequat blandit mollis. Aenean lobortis quam feugiat, malesuada nisi sit amet, aliquam lorem. Suspendisse eu lorem erat. Fusce luctus quis nulla eget gravida. Sed pretium consequat orci, eget rhoncus libero sollicitudin et. Integer in vulputate felis. Vivamus fringilla et eros vel tincidunt. Nunc tincidunt diam sem, vitae facilisis velit mattis ut.

Online Inquiry

Parameters

ModelFT-R250
Packing material3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc
Pouch widthW：80-250mm, L: ≤350mm
Filling range20-1000g
Packing speed30-60bag，min（speed is depends on the product natures）
Average precision≤ ±1
Total power2.5KW
Dimensions1900mm X 1300mm X 1500mm（L*W*H）

Applications

With different kinds of Auxiliary device, the packaging machine can handle different kinds of products

  • Baked Goods (Biscuits & Cakes)
  • Cannabis
  • Coffee
  • Condiment (ketchup，Mustard Sauce，Jam，mayonnaise，tahini，butter，soy sauce)
  • Confectionery (candy，chocolate)
  • Dairy Products（Cheese，milk powder）
  • Frozen Food (Prawn，Shrimp，Fish，Scallops，Chiken，Peas，Corn，Dumpling，Burger，samosas）
  • Fruit & Vegetable（Fresh fruit，Dried Fruit，Peas）
  • Food Grains & pulses (Rice，Whole Wheat，rolled oats，millet，corn kernels，legumes，noodles)
  • Kimchi & Pickles
  • Meat & Poultry (Chicken，pork，beef，beef jerky)
  • Pet Food
  • Snacks & Chips (Nuts ， seeds）
  • Seasonings & Spices (seasoning mix, chili powder，Galic Powder，curry power，Turmeric Powder，salt，)
  • Granule(Rice，peas)
  • Liquid & Paste(Beverage ，Liquor)
  • Powder (Milk，Coffee, Spices, Salt,)

Video

Working steps

Bag delivering→ coding →opening →filling 1 →filling 2→ auxiliary→ exhaust →heat sealing→ forming and discharge

Auxiliary Equipment

Multi heads weigher

Z type conveyor

Auger filler

Auger infeed conveyor

Liquid pump

Bowl conveyors

Features

  • Capable of working with different kinds of dosing system, capable of packing a wide range of products.
  • Capable of working with a range of pouches.
  • Easy to operate, With PLC controller, HMI system makes easy operation.
  • One step of changing bag size on screen, then the machine will do the adjustment accordingly.
  • Full automatically finish all steps like feeding, bag picking, filling, closing, sealing, date coding.
  • Perfect prevention system: when the bag is not opened or not opened completely, it will be non-filling and non-sealing, so the bags can be reused and the product is not wasted thus save the production cost.
  • The product contact parts are made of food grad SUS304 to ensure sanitation and safety.
  • High quality plastic bearings, no need to oil, no contamination.
  • Vacuum generator, low consumption, high efficiency, easy to clean, and longer useful life.

Sample bags

Optional functions

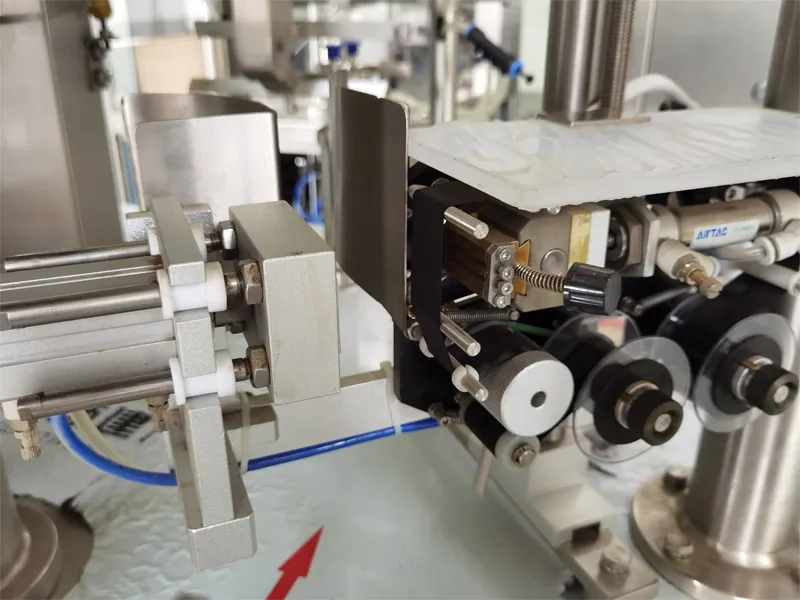

  • Date coders
  • Bag Bottom Vibrator

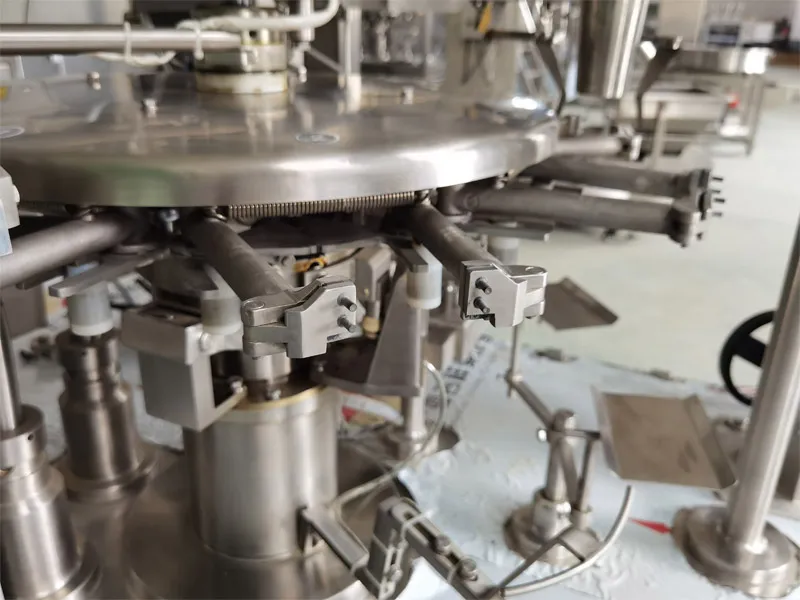

  • Bag Clamping Detection Device

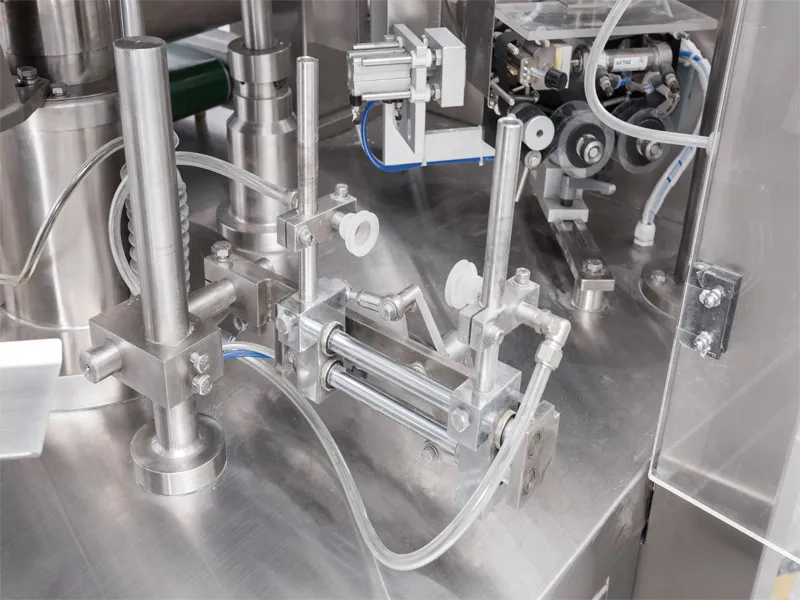

  • Bottom Bag Opening Device
  • Double Cylinder Patting Device
  • Simple Flushing Device
  • Empty Bag Circulation Device
  • Bag Mouth Dust Removal Device
  • Empty Bag Rejection Device
  • Zipper Closing device
  • Zipper Opening Device
  • Side-to-side Leveling Device
  • Ribbon Coding Machine
  • Rotary Flushing Device
  • Safety Door Switch
  • Stainless Steel Hopper Vibrator
  • Steel Stamping Coder
  • Electric Bag Magazine
  • Dust Collector
  • Enclosed Frame
  • Enclosed Frame With Gap

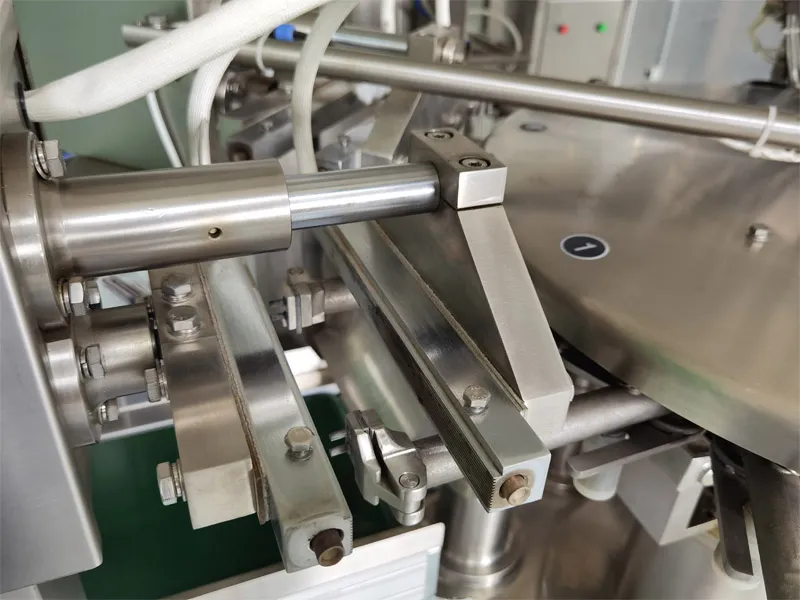

  • Heat Sealing Device
  • Horizontal Bagging Device
  • Independent Electrical Cabinet
  • Material Poker
  • Automatic Oiling Device
  • Bag Drag-chain
  • Side Motor Flipping Vibrator
  • Simple Extraction Device (with Vacuum Pump)
  • Top Tray
  • Transformer
