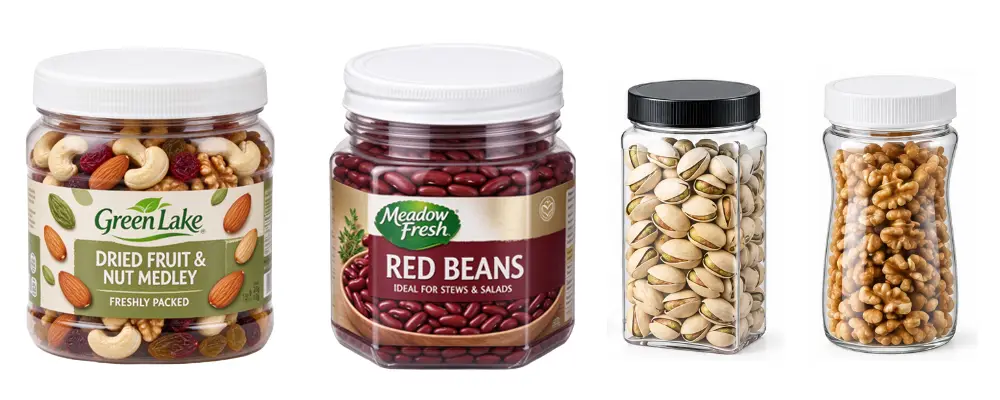

Sample Can
Applications
Oat Products:
Oatmeal, Rolled Oats, Instant Oats, Steel Cut Oats, Whole Oats, Oat Groats, Oat Bran, Oat Cereal Breakfast Cereals: Breakfast Cereals, Granola, Muesli, Corn Flakes, Bran Flakes, Wheat Flakes, Rice Cereal Grains & Cereals: Multigrain Cereal, Mixed Cereals, Cereal Mix, Grain Mix, Millet, Quinoa, Buckwheat, Barley, Mixed Grains Specialty Cereal Mixes: Puffed Rice, Puffed Oats, Puffed Grains, Dried Fruit and Cereal Mix, Nuts and Cereal Mix, Breakfast Food Mix
Features
- Automatic Filling – Fills oatmeal and oats into jars or cans according to the required filling weight.
- Automatic Capping – Automatically completes the capping process after filling.
- Integrated Packaging Line – Combines conveying, filling and capping into an efficient automatic process.
- Flexible Configuration – Can be configured according to product, filling weight, container size and production requirements.
- Stainless Steel Construction – Food-contact parts can be made of stainless steel according to the required configuration.
- Easy Operation – Automatic control system simplifies operation and helps maintain stable production.
Auxiliary Equipment
Automatic Can Feeding System
Grain Weighing Filling System
Jar Capping Machine
Date Coding Machine
Conveyor Output System
Parameters
| FT-50S | |||
| Parameter Item | Grain Weighing Filler | Can Turntable Feeder | Single-head Servo Capping Machine (without cover) |
| Main Function | Grain weighing filling | Can feeding / turntable feeding (turnable size 1100MM) | Cap dropping + capping (dumping pressurized gripper, servo pressing capping head, lifting rail, replaceable rail and cap holding components for different cases) |
| Production / Sealing Speed | 20-40 cans/minute (adjustable, related to can material, size and filling material fluidity) | 10-60 cans/minute (related to can size) | Cap dropping: 900-1500 bottles/hour, capping: 900-1500 bottles/hour |
| Applicable Height | 50-220mm (extra mods required for large height range) | 25-220mm (non-standard customization required beyond this range) | Bottle/Can height 30-250mm |
| Applicable Diameter | 35-120MM | 35-130MM (non-standard customization required beyond this range) | Cap diameter 20-120mm |
| Air Consumption | 115L/min (without bucket feeder); 200L/min (with 2 bucket feeders) | 130L/min (compressed air) | |
| Working Air Pressure | 0.6Mpa | 0.5-0.6MPa | |
| Power Supply | Single-phase AC220V 50/60Hz | Single-phase AC220V 50/60Hz | AC220V 50/60Hz |
| Total Power | 0.5KW | 0.37KW | 1KW |
| Net Weight | 230KG (approx.) | 100KG (approx.) | |
| Gross Weight | 300KG (approx.) | 150KG (approx.) | |
| Conveyor Height | 850mm | 850mm | |
| Main Body Material | 304 Stainless Steel | 304 Stainless Steel | |
| Overall Dimension (approx.) | L2500*W918*H1168mm (approx.) | L1430*W1180*H880mm | L2628*W1105*H1210mm (approx.) |
| Packing Size | L1260*W1030*H1750MM | L1510*W1310*H1200mm | Main machine: L1210*W1105*H1700; Cap feeder: L2240*W1010*H1680MM |
| Other Parameters / Remarks | Applicable range: can diameter 20-120mm, can/bottle height 30-250mm | ||
