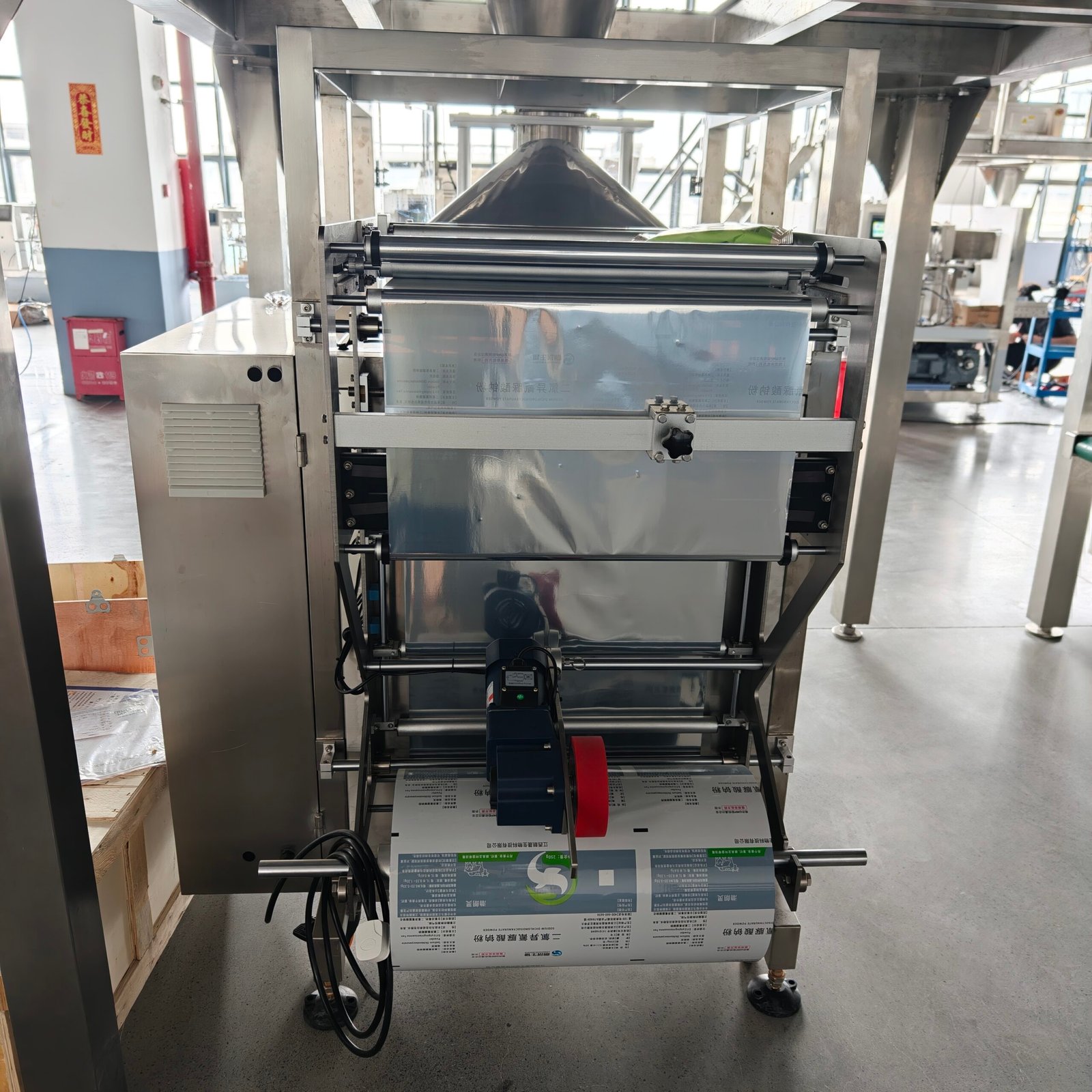

Peanuts Pistachios Sunflower Seeds Candy Chocolate Candy Granules VFFS Packing Machine

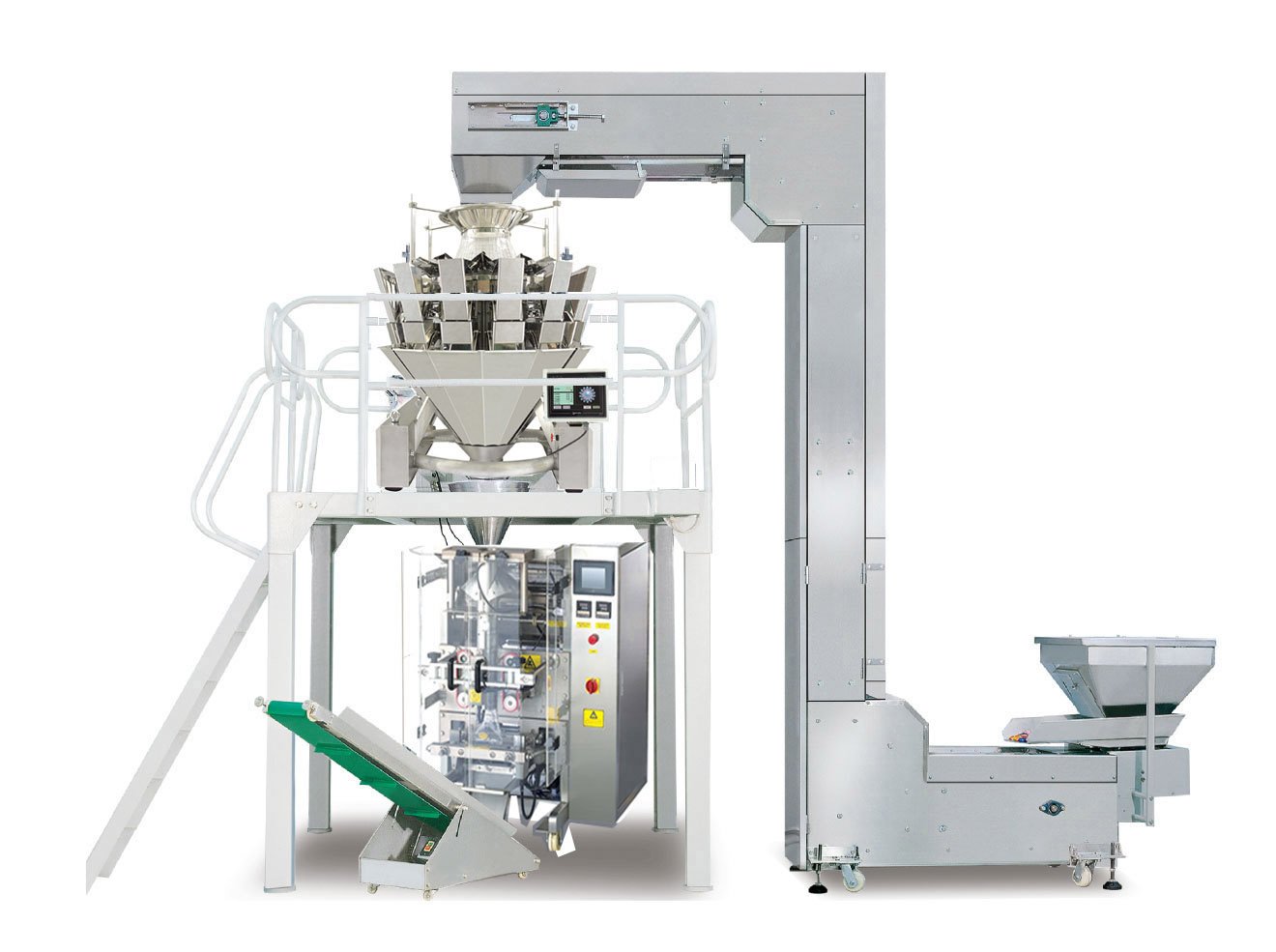

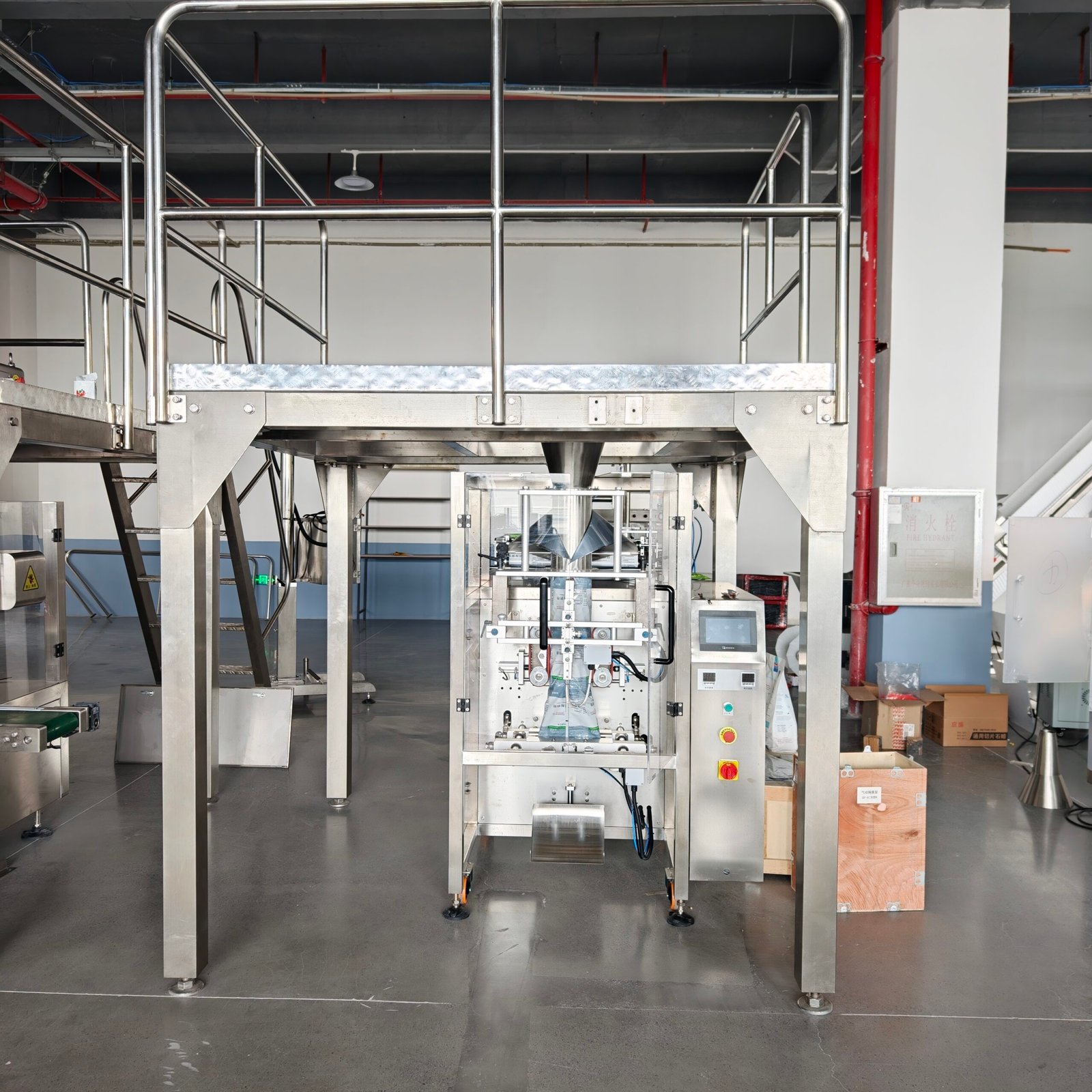

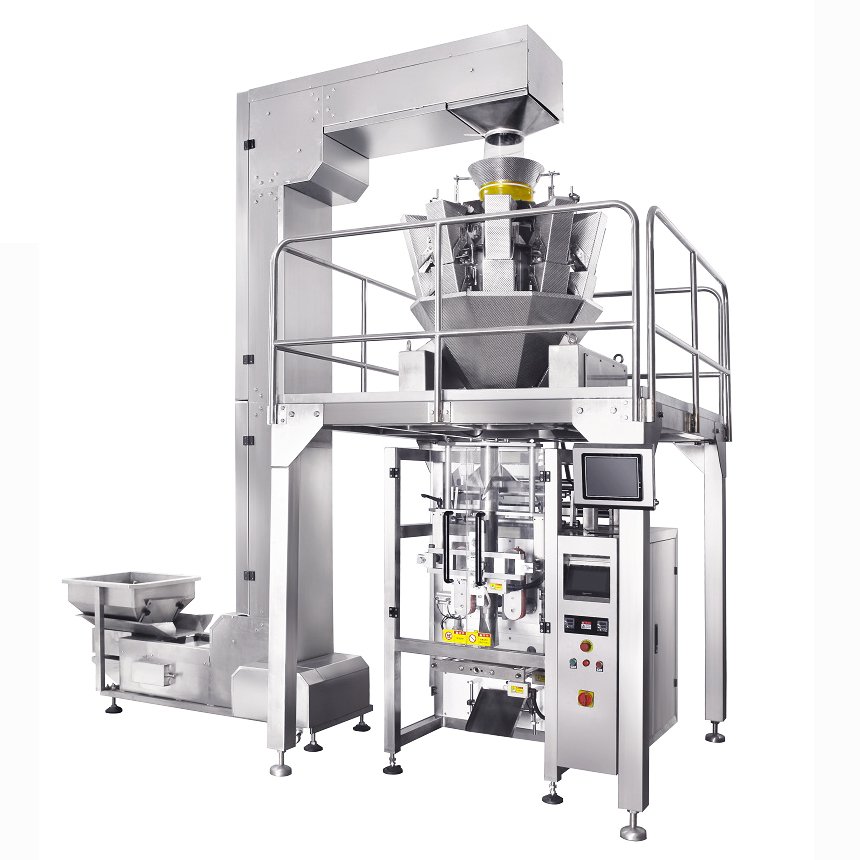

VFFS Packing Machine working with multi heads weigher, capable of packing different Kinds of products like puffed food, potato chips, coffee bean. crispy rice, candy, pistachios, multi heads weigher mounted on the packer director, which is lower than regular machine, save place and good for workshops with lower ceiling.

Model	FT-420 packing machine
Packing Speed	40-60 bags / min
Pouch Size (mm)	L50 – 300, W90 – 200
Max. Film Width (mm)	420
Pouch Thickness (mm)	0.04 – 0.09
Pouch Material	BOPP / CPP, PET / AL / PE etc
Compress Air	0.8MPa, 0.3m3/min
Power	4.0KW
voltage	220V/50HZ
Unit Size (mm)	122010201450
Unit Weight (kg)	450

Snack foods: such as nuts (peanuts, walnuts), puffed snacks (potato chips, rice crackers), candies, chocolate, jellies, sunflower seeds, etc.
Grains and Oils: Such as rice, millet, legumes, corn, seeds, etc.
Industrial and Chemical Products: Such as animal feed, chemical fertilizers, laundry detergent, color masterbatches, and certain granular chemical products.
Frozen Foods: Such as frozen tangyuan, dumplings, and other granular foods.
Other: Pet food, small hardware parts, certain granular pharmaceuticals, etc.

Film feeding → Bag forming → Longitudinal sealing (back sealing) → Transverse sealing (bottom sealing) → Cutting and filling → Transverse sealing (sealing + cutting) → Finished product output

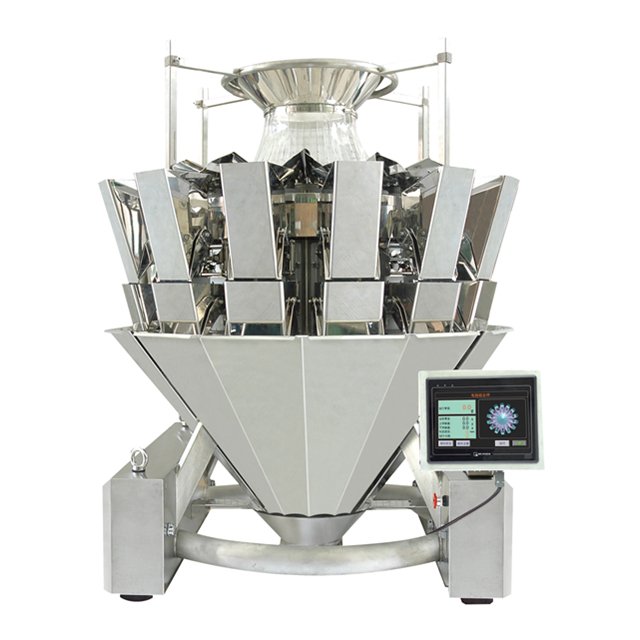

Multi heads weigher

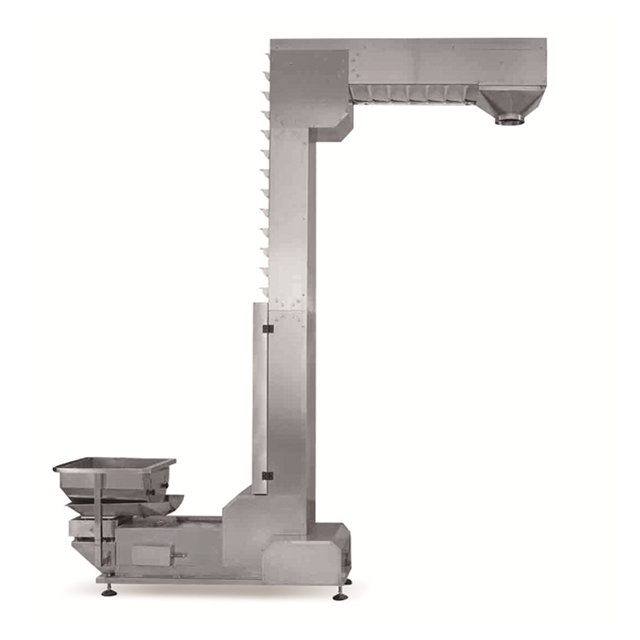

Z type conveyor

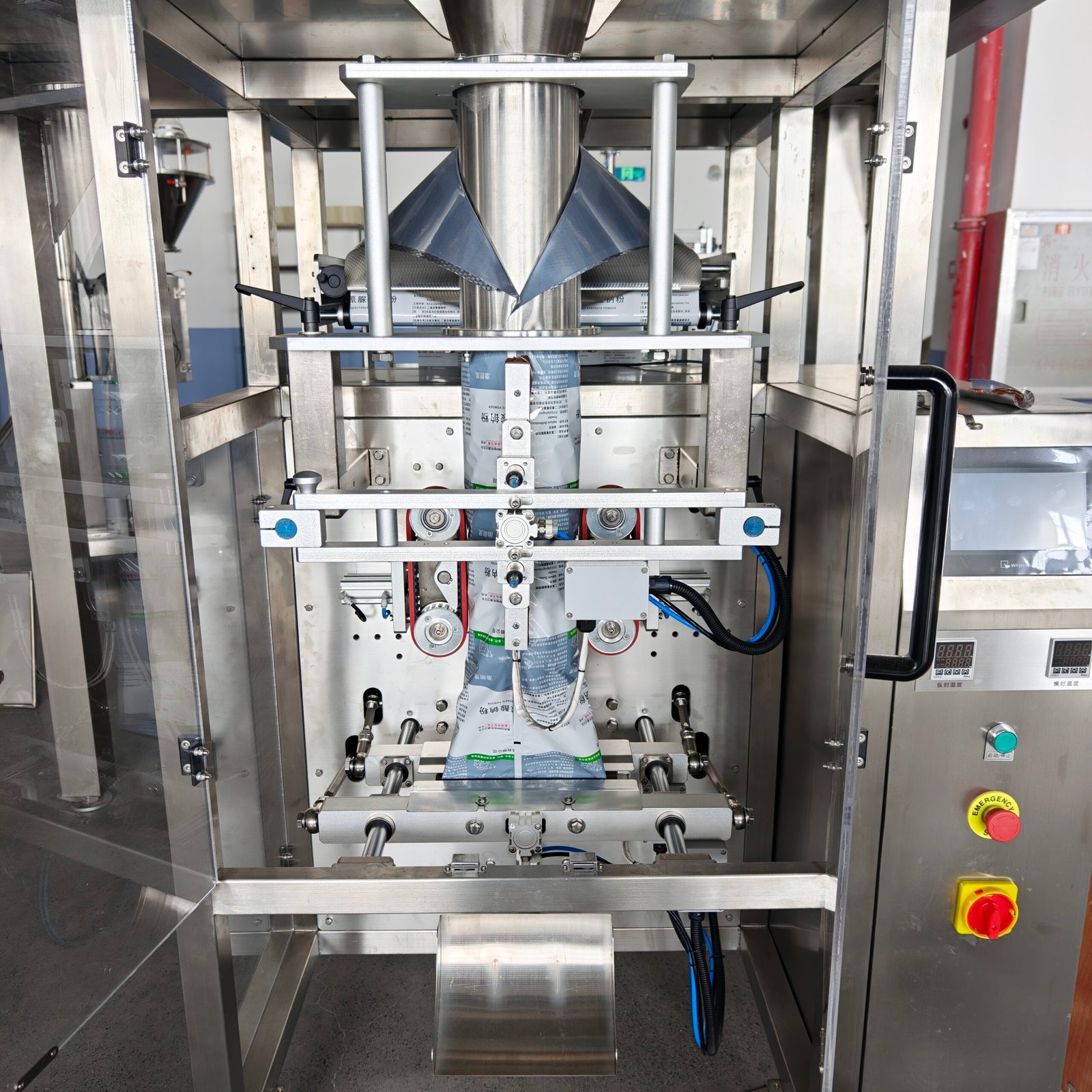

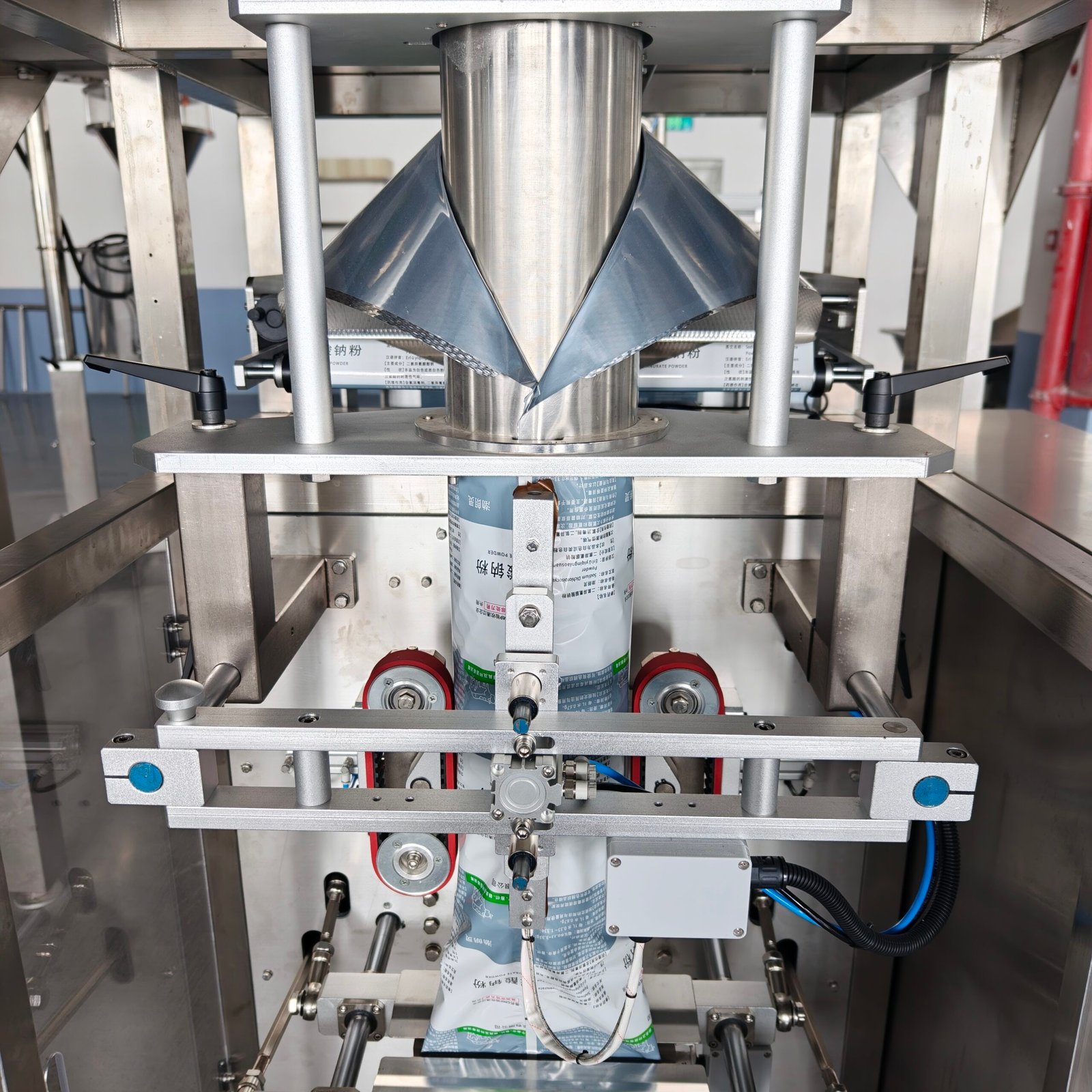

High-quality sealing: Featuring a high-precision toothed sealing design and an independent temperature control system, the seals are strong and airtight, preventing air leakage.
Precise cutting: Color mark sensors enable mark-tracking control, ensuring accurate pattern alignment and clean cuts on every bag, with a precision of up to ±1 mm.
Intelligent error prevention: The system interfaces with weighing equipment to automatically reject empty bags or substandard products that do not meet weight requirements.
Easy to operate: Equipped with a color touchscreen, the machine provides a clear and intuitive display of its status. It supports the storage of multiple product formulas, which can be recalled with a single button press when switching product types.
By replacing the filling head, the machine can accommodate a variety of materials, including powders, granules, and liquids.

Gusset device
Hole punching device
Air degassing device
Link bag
Air flushing

Peanuts Pistachios Sunflower Seeds Candy Chocolate Candy Granules VFFS Packing Machine

Parameters

Applications

Video

Working steps

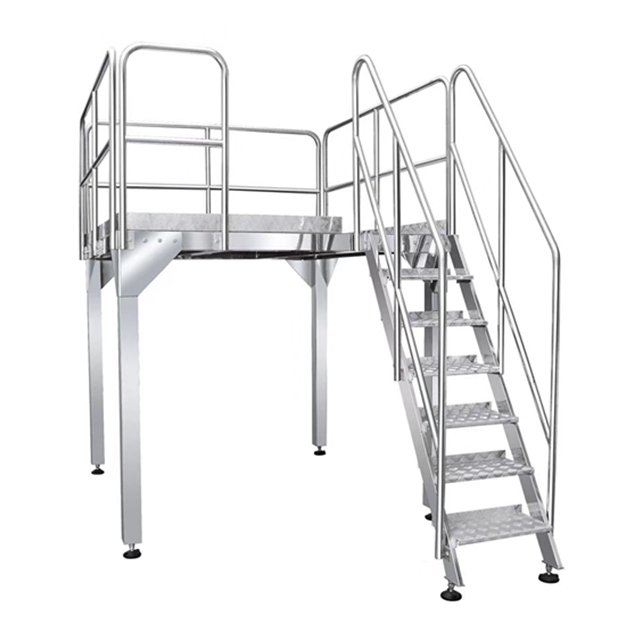

Auxiliary Equipment

Features

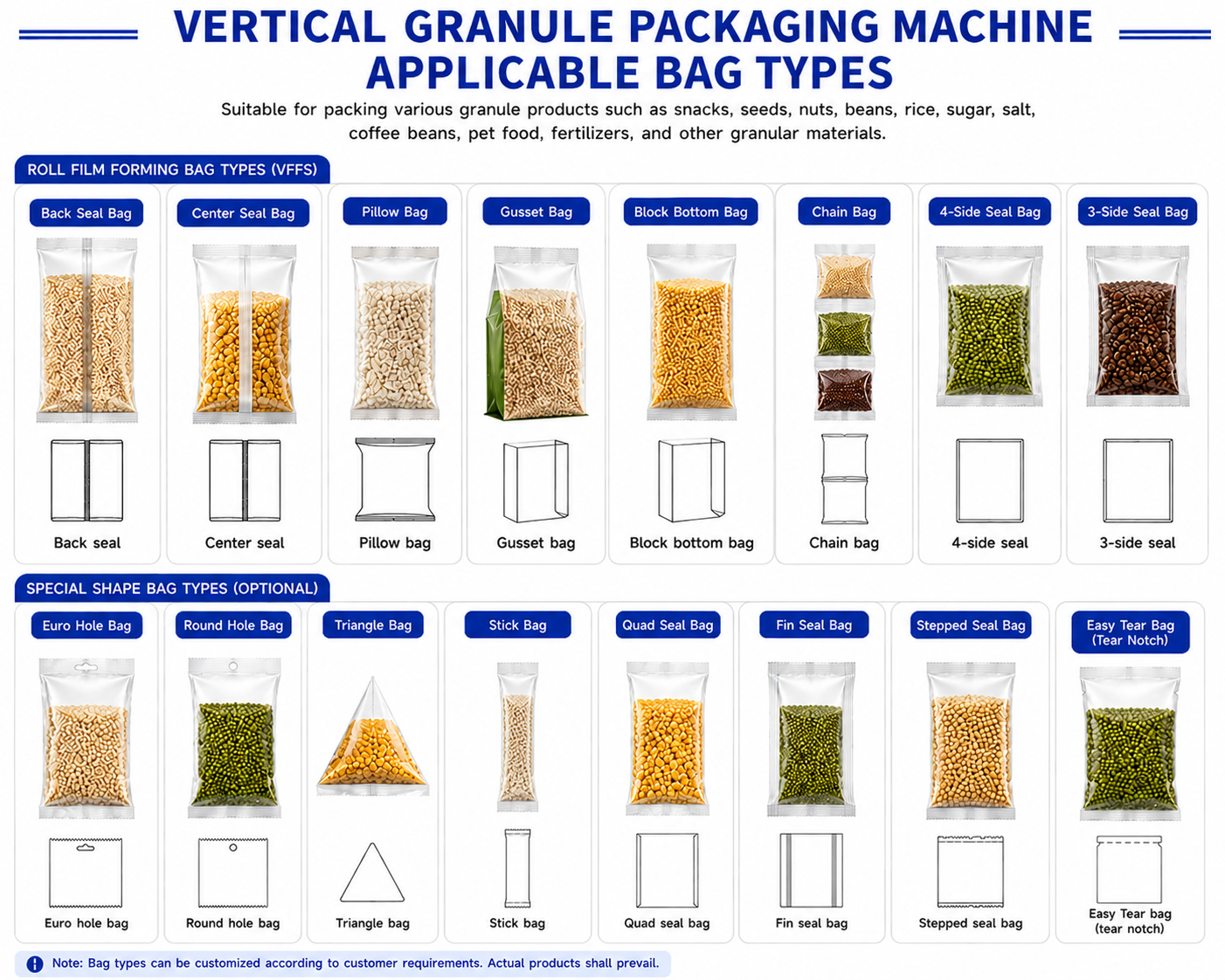

Sample bags
