parameters
| Model | FT-R200 | FT-R250 |
| Packing material | 3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc. | |
| Bag width W | 70-200mm | 100-250mm |
| Filling range | 10-1000g | 20-2500g |
| Packing speed | 40-60 bags/min (speed depends on product nature) | |
| Average precision | ≤ ±1% | |
| Total power | 2.5KW | |
| Dimensions (L×W×H) | 1900×1570×1700mm | |
| Work steps | Giving bag → Coding → Opening → Filling 1 → Filling 2 → Auxiliary → Exhaust → Heat sealing → Forming and output product | |
Applications
Fish Balls & Meatballs: Fish balls, meatballs and other ball-shaped meat snacks suitable for vacuum pouch packaging. Ball-shaped Meat Products: Seasoned meat balls, cooked fish balls, and other ready-to-pack ball food products. Mixed Solid Foods: Blended meat snacks, beans, and other suitable solid food products requiring reduced air inside the package. Prepared Food Ingredients: Cooked ball food, prepared seafood snacks, and other suitable food ingredients requiring premade pouch filling and vacuum sealing. Vacuum-Packed Food Products: Food products requiring excess air removal before final sealing to achieve a compact package and controlled pouch appearance.
The filling and vacuum system can be configured according to product characteristics, filling weight, moisture content, pouch dimensions, vacuum requirements, and required production capacity.
Video
working steps
giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product
AUXILIARY Equipment
- Rotary Turn-table
- Bowl Type Elevator
FEATURES
- With different kinds of dosing system, capable of packing a wide range of products.
- Capable of working with a range of pouches.
- Easy to operate. With PLC controller, HMI system enables simple operation.
- Easy to adjust bag size on the screen, then the machine will adjust accordingly.
- High automation: automatic bag picking, filling, closing, sealing and date coding.
- Perfect protection system: if the bag is not opened or not fully opened, filling and sealing will not be triggered. The pouches can be reused to avoid product waste and reduce production cost.
- Product contact parts are made of food grade SUS304 to guarantee sanitation and safety.
- High-quality plastic bearings, no lubrication required, no contamination risk.
- Vacuum generator, low energy consumption, high efficiency, clean and long service life.

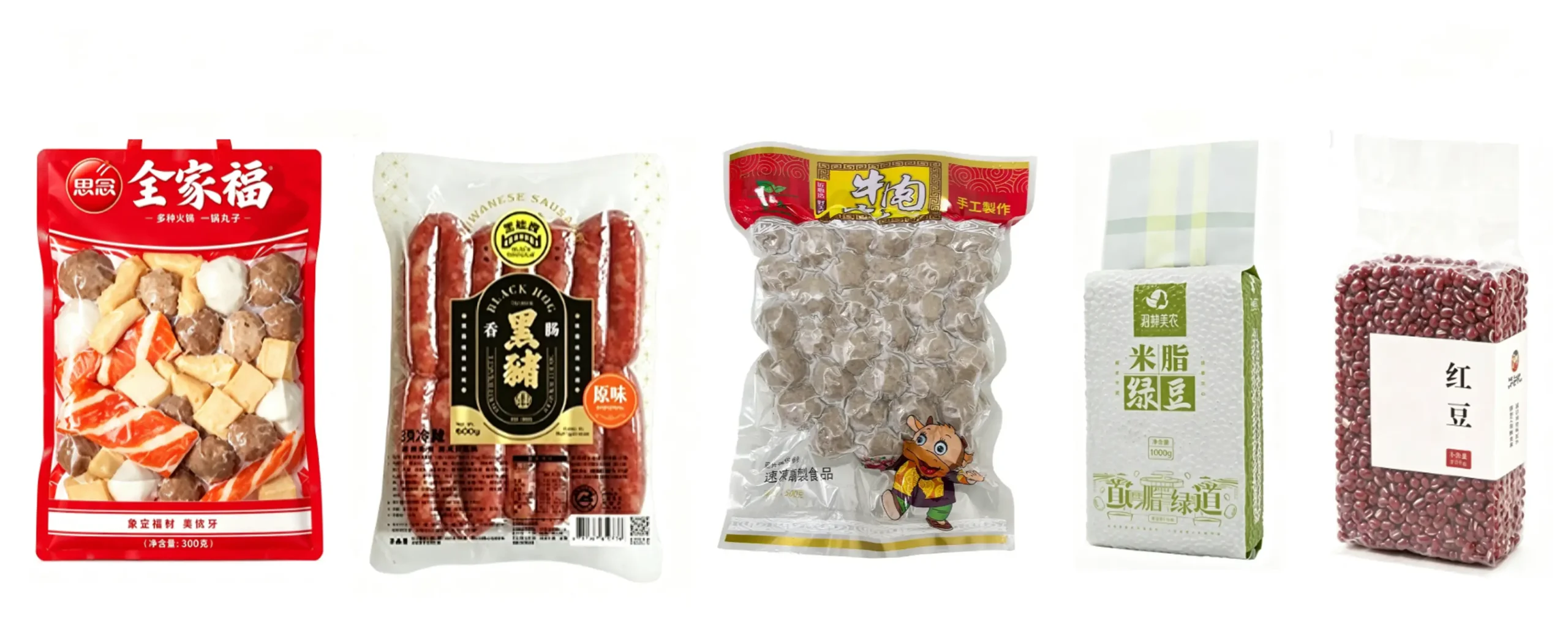

SAMple bags
