parameters
| Model | FT-R200 |
| Packing material | 3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc |
| Pouch width | W：80-200mm, L: ≤350mm |
| Filling range | 20-1000g |
| Packing speed | 30-60bag，min（speed is depends on the product natures） |
| Average precision | ≤ ±1 |
| Total power | 2.5KW |
| Dimensions | 1900mm X 1300mm X 1500mm（L*W*H） |
Applications
Laundry Pods: Single-chamber laundry pods, multi-chamber laundry pods, liquid detergent pods, and other water-soluble laundry detergent capsules.
Detergent Capsules: Pre-measured detergent capsules and other unit-dose household cleaning products suitable for premade pouch packaging.
Dishwasher Pods: Dishwasher detergent pods, dishwasher capsules, and other compatible unit-dose cleaning products.
Soft & Sticky Products: Selected soft, flexible, or slightly sticky products requiring specialized product-contact surfaces and controlled weighing.
Household Cleaning Products: Other compatible unit-dose household cleaning products that can be automatically weighed and filled into premade pouches.
The weighing and feeding system can be configured according to pod size, shape, surface characteristics, quantity per pouch, pouch dimensions, and required production capacity.
Video
working steps
Feeding, Weighing, Bag picking, Date/batch coding, Bag opening, filling, heat sealing, discharge
AUXILIARY Equipment
- Multi heads weigher
- Linear type infeed conveyor
- Platform
FEATURES
Anti-Stick Multihead Weigher: A specialized multihead weighing system helps reduce laundry pod adhesion during weighing and discharge, providing more stable handling of soft and sticky products. Your current product page specifically identifies an anti-stick multihead weigher for laundry pods.
Designed for Laundry Pods: The feeding and weighing system is configured for laundry detergent pods and similar unit-dose products requiring gentle and controlled handling.
Automatic Weighing & Portioning: The multihead weigher automatically portions laundry pods according to the preset target quantity or weight before pouch filling.
Rotary Premade Pouch Packaging: Automatically completes pouch picking, opening, product filling, heat sealing, and finished-pouch discharge through a continuous rotary packaging process.
Multiple Premade Pouch Formats: Supports compatible stand-up pouches, flat pouches, zipper pouches, gusset pouches, three-side-seal bags, four-side-seal bags, and other premade pouch formats.
Automatic Bag Size Adjustment: Bag-size settings can be changed through the touchscreen, after which the machine performs the corresponding adjustment automatically.
No Pouch Opening – No Filling: When a pouch is missing or not completely opened, the machine prevents filling and sealing, helping reduce product and pouch waste.
Fully Automatic Operation: Feeding, weighing, pouch picking, filling, sealing, and date coding can be integrated into one automatic packaging process.
PLC & HMI Touchscreen Control: The PLC controller and HMI touchscreen provide convenient machine operation and adjustment of packaging parameters.
SUS304 Product-Contact Parts: Product-contact components are made from food-grade SUS304 stainless steel according to the current machine configuration.

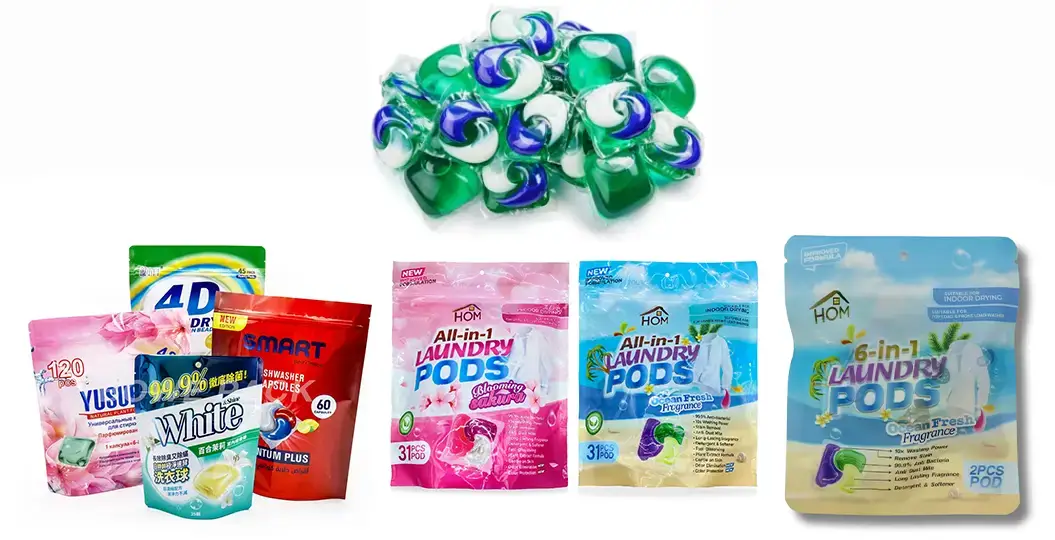

SAMple bags
PLAN YOUR PROJECT
Tell us what you need to pack.
Share your product, bag type, filling weight and target output. We’ll help you identify a suitable configuration.
