Video

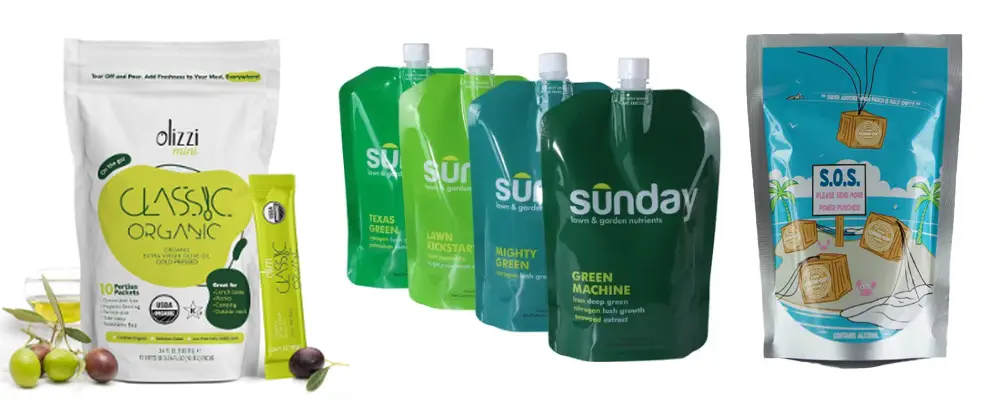

Sample bags
Applications
This Liquid Premade Pouch Packaging Machine is designed for free-flowing and pumpable liquid products requiring accurate filling into stand-up pouches, spout pouches, flat pouches, and other premade bag formats.
Beverages & Liquid Foods:
Drinking water, fruit juice, tea beverages, liquid concentrates, non-carbonated drinks, and other free-flowing beverage products.
Edible Oils & Liquid Condiments:
Olive oil, cooking oil, soy sauce, vinegar, fish sauce, liquid seasoning, syrup, and other pumpable food liquids.
Household & Personal Care Liquids:
Liquid detergent, fabric softener, dishwashing liquid, hand soap, shampoo, body wash, and other liquid cleaning or personal-care products.
The liquid filling system can be selected and configured according to product viscosity, filling volume, flow characteristics, and required output. Different premade pouch formats can be handled according to the pouch feeding and opening configuration.
Features
1. Versatile Liquid Filling: Perfectly adaptable for various liquids such as beverages, cooking oil, daily cleaners, and water.
2. Imported PLC fully computerized control system with a human-machine interface and an extra-large touchscreen for easy operation.
3. High-Precision Liquid Pump: Ensures accurate metering, stable filling, and minimal material waste.
4. Bag Types: Stand-up pouch,Spout pouch,Zipper stand-up pouch,Shaped pouch,etc.
5. Automatic Rotary Design: Automatically completes pouch picking, opening, filling, and sealing processes.
6. Over 90% of the machine is constructed from 304 stainless steel and aluminum alloy.
Auxiliary Equipment
Liquid Pump
Rotary pouch packing machine
Out-put conveyor
Parameters
| Model | FT-8200 |
| Packing speed | 30-60bag/min（speed is depends on the product natures） |
| Bag size | W：70-200mm, L: ≤350mm |
| Bag type | 3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc |
| Weighing range | 10g-1kg |
| Measurement accuracy | ≤±0.5~1%, depending on the measuring equipment & materials. |
| Maximum bag width | 200mm |
| Gas consumption | 0.8Mpa 0.3m3/min (Supply by user) |
| Total Powder/Voltage | 4.5KW 380V 50/60Hz |
| Air compressor | Not less than 1CBM |
| Dimension | 1900mm X 1300mm X 1500mm（L*W*H） |
| Machine Weight | 1500kg |
PLAN YOUR PROJECT
Tell us what you need to pack.
Share your product, bag type, filling weight and target output. We’ll help you identify a suitable configuration.
