Applications
This Sauce Premade Pouch Packaging Machine with Paste Pump is designed for viscous and semi-viscous food products requiring controlled pump filling into ready-made pouches.
Tomato & Chili Sauces:
Tomato sauce, ketchup, chili sauce, hot sauce, sweet chili sauce, and other tomato- or chili-based condiments.
Dressings & Condiments:
Salad dressing, mayonnaise, mustard, barbecue sauce, cooking sauce, dipping sauce, and other viscous condiment products.
Seasoning Sauces:
Dumpling sauce, marinade sauce, curry sauce, seasoning sauce, flavored sauce, and other pumpable food seasonings.
Other Viscous Food Products:
Fruit sauce, jam, syrup-based sauces, concentrated sauce mixtures, and similar pumpable products.
The paste filling system can be selected according to product viscosity, particle content, target filling volume, and required output. Different premade pouch formats can be configured according to bag size, sealing requirements, and production needs.
Features

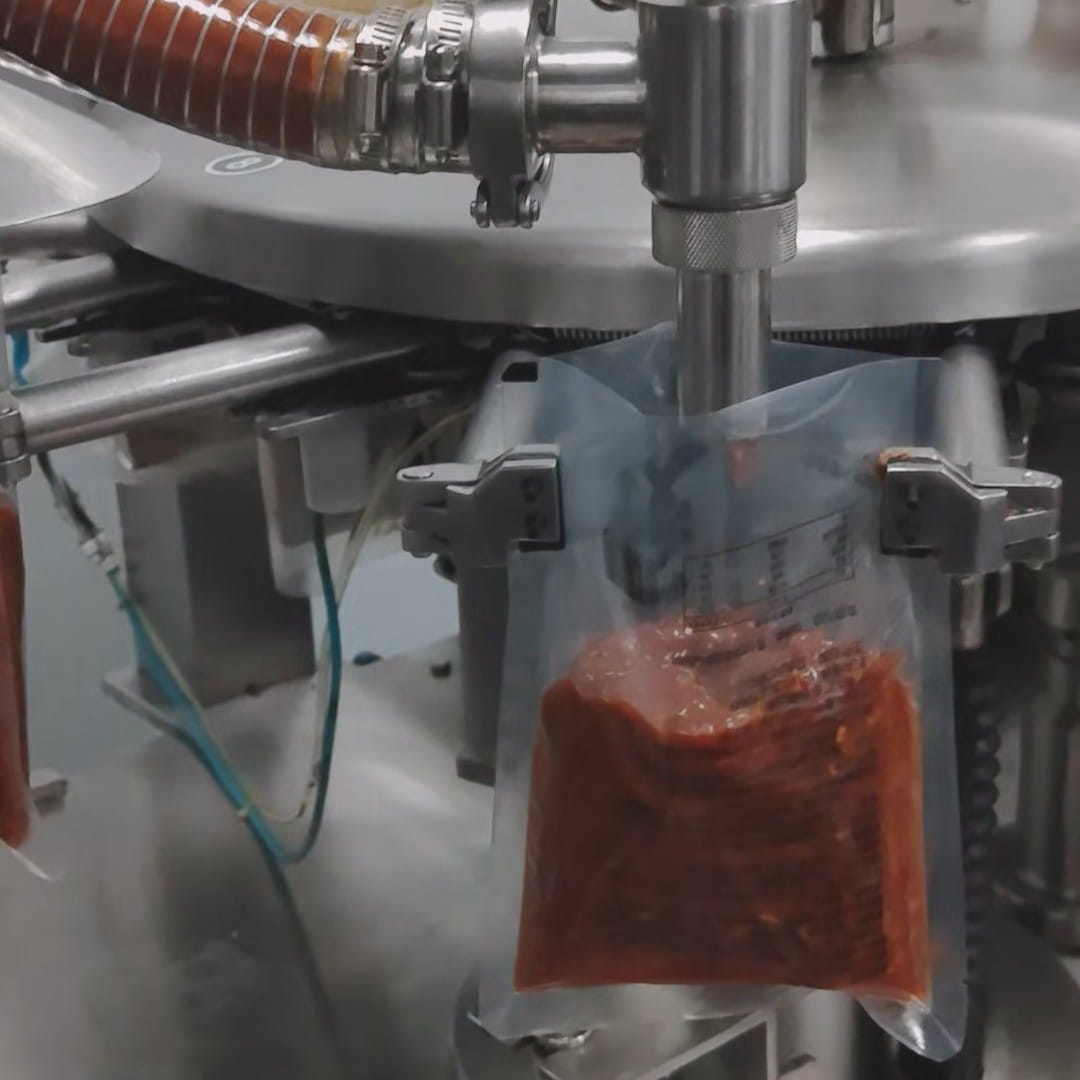

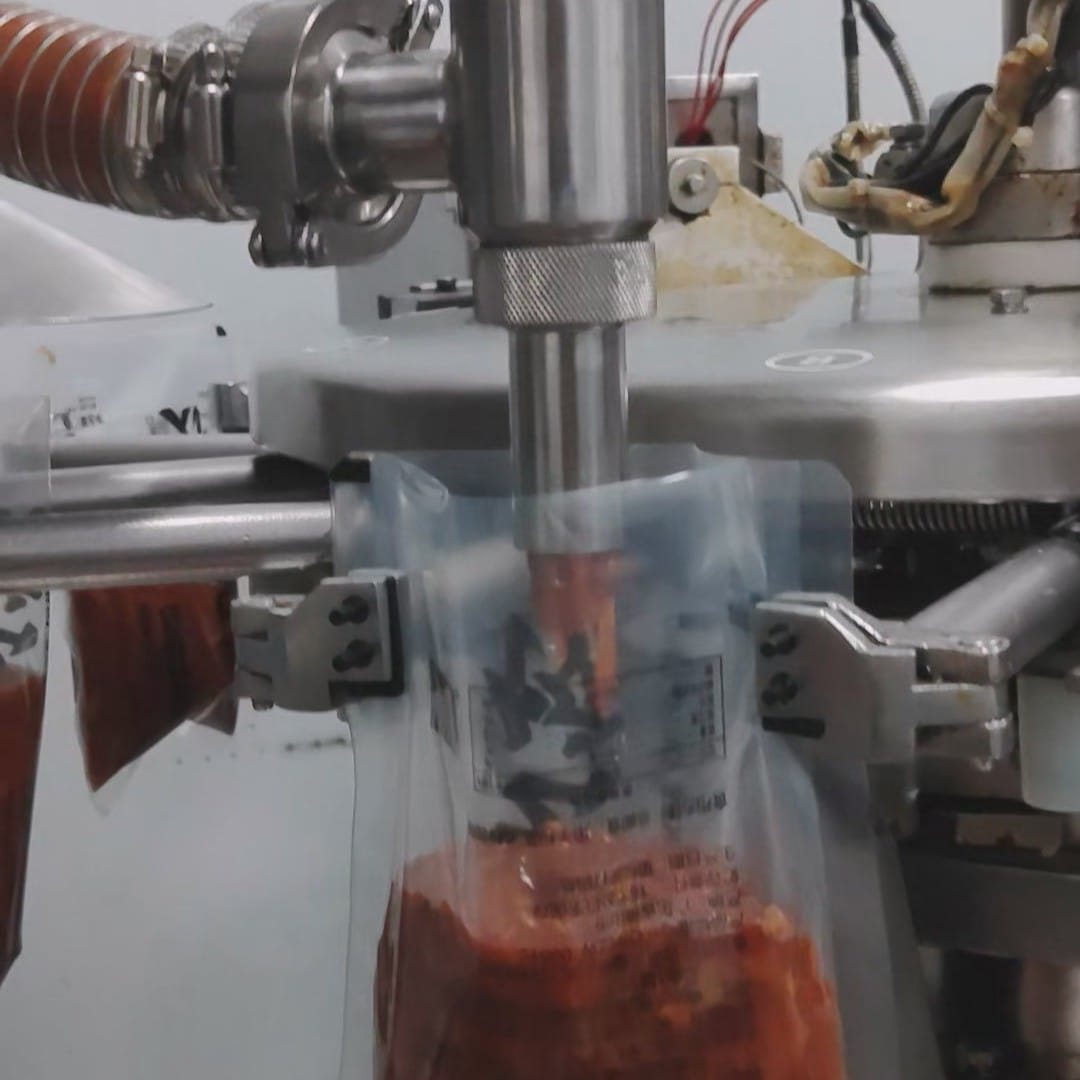

Paste Pump Filling System
Designed for tomato sauce, chili sauce, salad dressing, seasoning sauce, and other viscous or semi-viscous products, providing stable and controlled filling according to product characteristics.

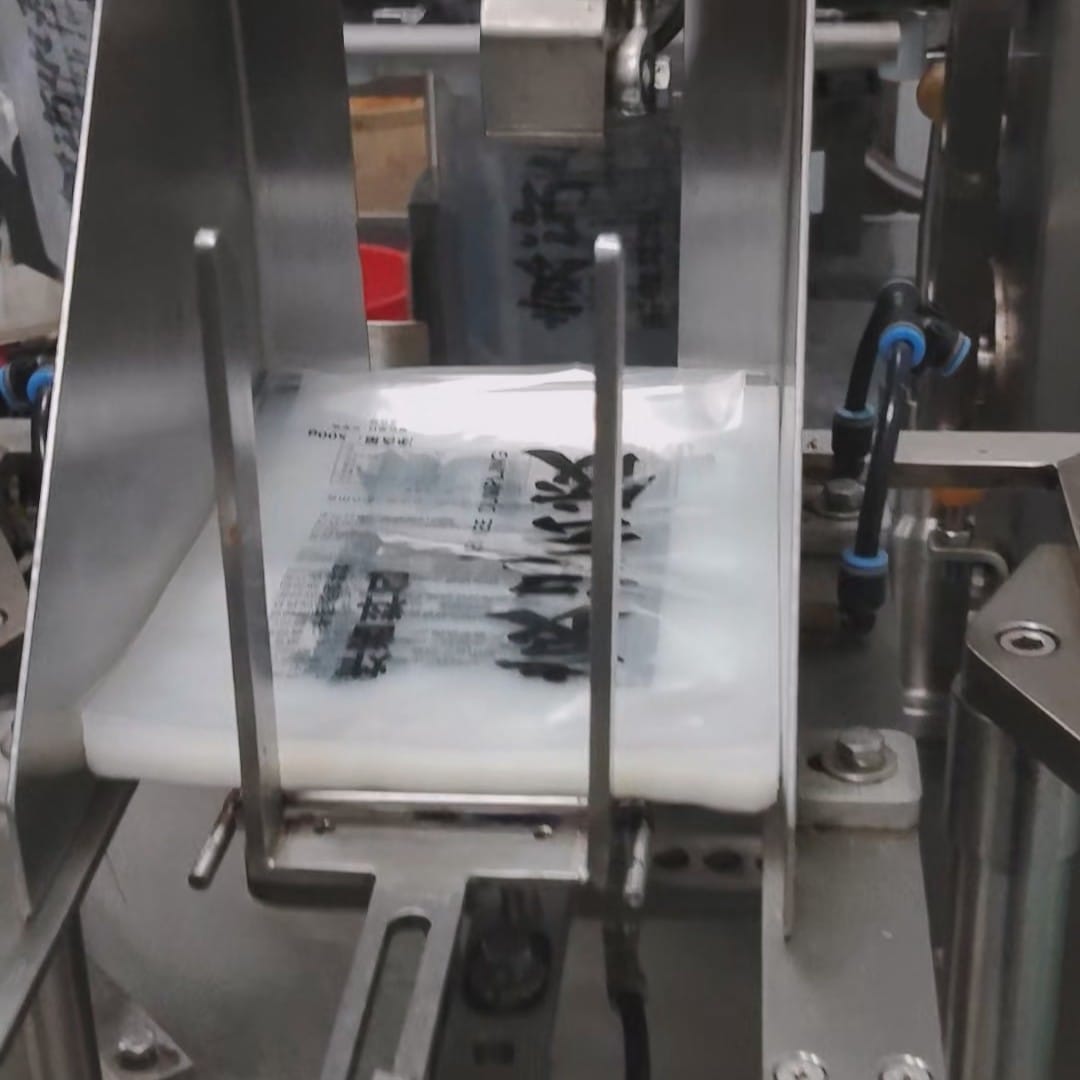

Automatic Premade Pouch Handling
Automatically completes pouch feeding, pouch opening, filling, sealing, and finished-pouch discharge for continuous packaging production.
Suitable for Viscous Sauces
The filling system can be configured according to product viscosity, filling volume, flow characteristics, and particle content, making it suitable for a wide range of pumpable sauces and condiments.
Clean Filling & Reliable Sealing
The filling nozzle and filling parameters can be optimized to reduce dripping and product contamination around the pouch opening, helping maintain a clean sealing area and consistent seal quality.
Multiple Premade Pouch Formats
Compatible with different premade pouch styles according to machine configuration, including stand-up pouches, flat pouches, zipper pouches, and other suitable bag formats.
Auxiliary Equipment
Liquid Pump
Paste Pump
Parameters
| Model | FT-8300 |
| Packing speed | 5-60 bags/min, depend on the measuring equipment, materials, product’s weight & packing film’ material etc. |
| Bag size | (L)150-450mm (W) 180-300mm |
| Bag type | Premade pouch, 3 side-seal pouch with zipper or without zipper |
| Weighing range | 50g-3kg |
| Measurement accuracy | ≤±0.5~1%, depending on the measuring equipment & materials. |
| Maximum bag width | 320mm |
| Gas consumption | 0.8Mpa, 0.3m3/min(supply by user) |
| Total Powder/Voltage | 4.5KW 380V 50/60Hz |
| Air compressor | Not less than 1CBM |
| Dimension | (L)2150 * (W)1835 * (H)1500mm |
| Machine Weight | 1600kg |
| Working steps | Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products. |
PLAN YOUR PROJECT
Tell us what you need to pack.
Share your product, bag type, filling weight and target output. We’ll help you identify a suitable configuration.
