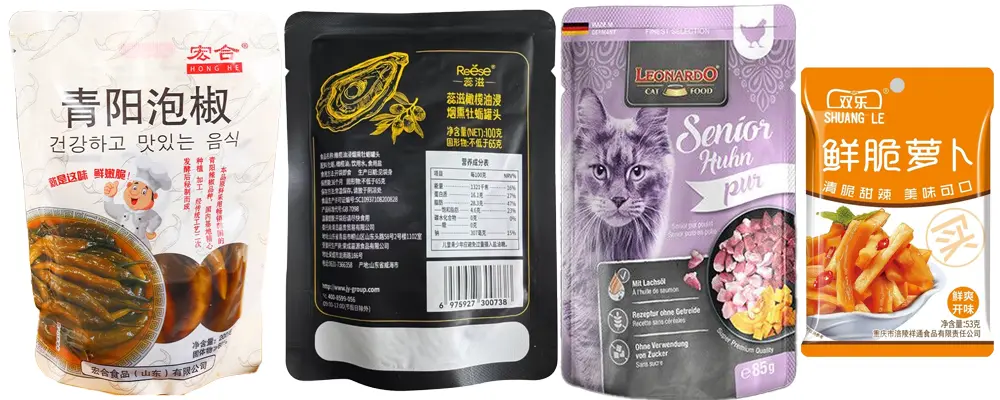

Sample bags

Applications
Pickled and Fermented Foods:
Pickled chili peppers in brine, pickled radishes, kimchi, sauerkraut, olives in brine, and pickled cucumbers.
Ready-to-Eat Porridges and Soups:
Multigrain porridge, Eight-Treasure porridge, bird's nest soup, white fungus (tremella) soup, red bean soup, and chunky meat or vegetable stews.
Desserts and Fruits in Syrup:
Fruit cocktails in syrup, diced peaches/lychees in sweet juice, boba pearls in brown sugar syrup, nata de coco, and sago pudding.
Chunky Condiments and Sauces:
Chili oil with flakes (chili crisp), diced mushroom sauce, minced beef sauce, chunky salsa, and curry paste with meat/vegetable chunks.
Marinated Snacks and Deli Foods:
Spicy marinated quail eggs, braised meat chunks with gravy, and seafood snacks (like spicy clams or snails) in marinade sauce.
Features
- Integrated Liquid Pump System: Equipped with a dedicated liquid filling pump designed to precisely dose juices, brines, or liquid additives along with solid products.
- Smart Touch Screen Control: Features a user-friendly PLC control system for easy parameter adjustments, quick size changes, and intuitive operation management.
- Dual-Purpose Versatility: Perfectly optimized for packaging both liquid/semi-solid foods (such as pickled peppers with brine) and dry, bulky mixes (such as multigrain porridge).
- Fully Automated Process: Automatically executes pouch feeding, opening, liquid/solid filling, sealing, and output in one seamless, high-speed cycle.
- Premade Pouch Compatibility: Works seamlessly with various styles of pre-formed bags, including stand-up pouches and flat bags, delivering an attractive retail finish.
- Food-Grade Stainless Steel Construction: Manufactured using high-quality stainless steel, ensuring excellent corrosion resistance, easy cleaning, and compliance with strict food hygiene standards.
Auxiliary Equipment
Bowl Elevator
Liquid Pump
Out-put Conveyor
Pre-made Pouch Packing Machine
Parameters
| Model | FT-8200 | FT-8230 |
| Packing speed | 30-60bag/min(speed is depends on the product natures) | MAX 60 bags/min, depends on the quality of the packaging film, packaging materials packaging weight etc. |
| Bag size | W:70-200mm, L: ≤350mm | (L)100-350mm (W)90-230mm |
| Bag type | 3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc | Pre-made bags, Stand-up bag, four-side sealed bag, three-side sealed bag, special-shaped bag |
| Weighing range | 10g-1kg | 10g-1kg |
| Measurement accuracy | ≤±0.5~1%, depending on the measuring equipment & materials. | ≤±0.5~1%, depending on the measuring equipment & materials. |
| Maximum bag width | 200mm | 230mm |
| Gas consumption | 0.8Mpa 0.3m3/min (Supply by user) | 0.8Mpa 0.3m3/min (Supply by user) |
| Total Powder/Voltage | 4.5KW 380V 50/60Hz | 4.5KW 380V 50/60Hz |
| Air compressor | Not less than 1CBM | Not less than 1CBM |
| Dimension | 1900mm X 1300mm X 1500mm(L*W*H) | L2070*W1630*H1460 |
| Machine Weight | 1500kg | 1500kg |
| Working steps | Bag delivering→ coding →opening →filling 1 →filling 2→ auxiliary→ exhaust →heat sealing→ forming and discharge | Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products. |
