Video

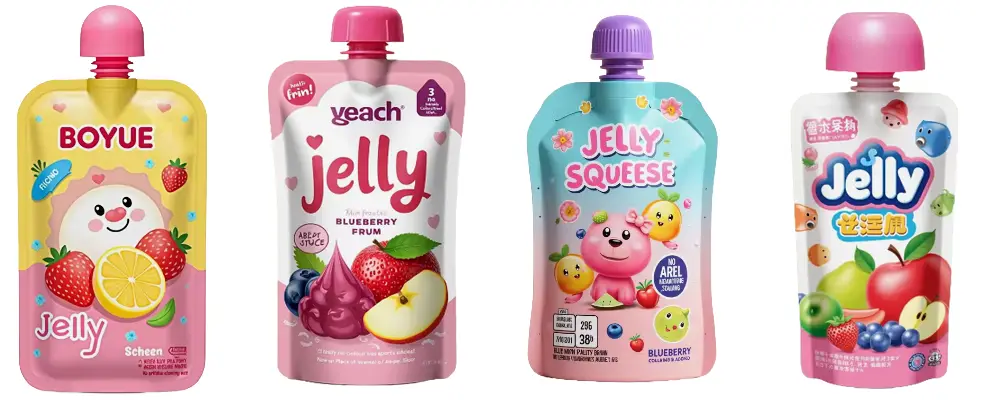

Sample bags
Applications

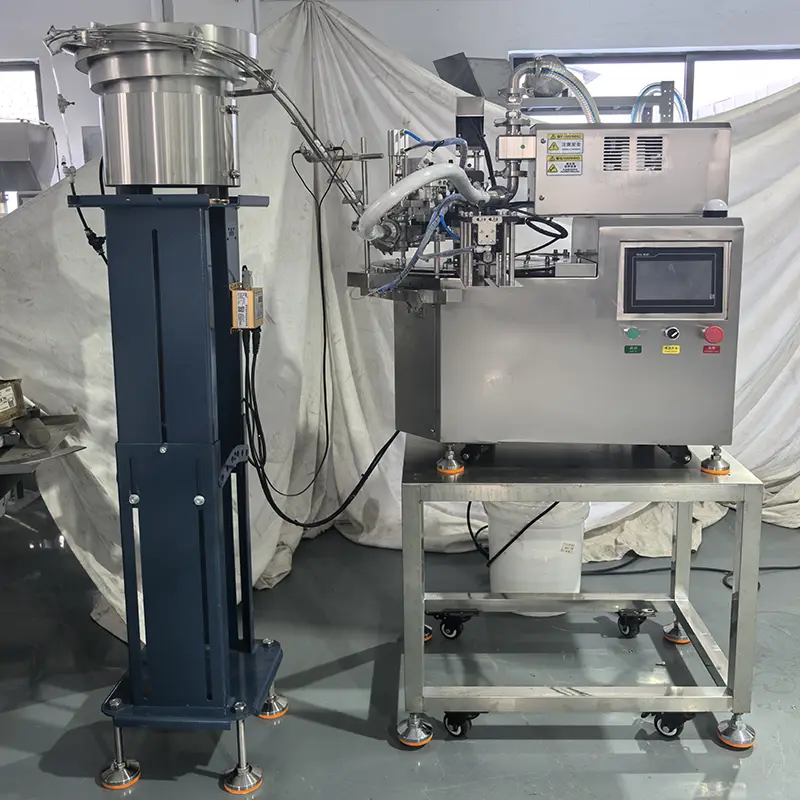

The Liquid Spout Pouch Filling Machine is widely used for packaging various liquid and semi-liquid products into convenient spout pouches.
Dairy & Beverage Products:
Soy milk, milk drinks, yogurt drinks, fruit juice, beverage concentrates, and nutritional drinks.
Liquid Food Products:
Sauces, ketchup, honey, syrup, jam, fruit puree, and other viscous food products.
Specialty Liquid Products:
Energy drinks, liquid supplements, and other flowable products requiring hygienic pouch packaging.
The filling system can be customized according to product viscosity, filling volume, pouch size, and production capacity requirements.
Features
- Suitable for various liquid products with stable and accurate filling performance.
- Automatic completion of pouch feeding, filling, spout sealing, and finished product discharge.
- High-precision filling system ensures consistent filling volume and reduces material waste.
- Equipped with PLC control system and touchscreen HMI for easy operation.
- Stainless steel structure meets food hygiene requirements and is easy to clean and maintain.
- Compatible with different sizes of spout pouches for flexible packaging applications.
- Compact design with reliable operation and high production efficiency.
Auxiliary Equipment
Date Coding Printer
Out-put Conveyor
Parameters
| Parameter | Specification |
| Machine Model | Automatic Spout Pouch Filling and Capping Machine |
| Package Product | Liquid, Paste |
| Filling Pump | Gear Pump (Material contact part: 316 Stainless Steel) |
| Filling Specification | 300–5000 mL |
| Hopper Capacity | 150 L (Material contact part: 304 Stainless Steel) |
| Center Spout Pouch Size | / |
| Corner Spout Pouch Size | Width: 60–440 mm, Height: 60–400 mm |
| Production Speed | 40–65 bags/min (Depends on filling volume, viscosity, and pouch standards) |
| Voltage & Frequency | 220V, 50Hz |
| Total Power | 6 kW |
| Net Machine Weight | Approx. 1000 KG |
| Aluminum Parts | Aluminum disk with hard anodizing treatment |
| Machine Frame Material | 304 Stainless Steel |
| Filling Head Material Contact | 304 Stainless Steel |
| Turntable Principle | Cam Divider |
| Machine Dimensions (mm) | Approx. L 2700 × W 2200 × H 2100 |
| Working Principle | Manual bag loading → Automatic pouch feeding → Automatic filling → Automatic cap dropping → Automatic capping → Automatic bag discharging |
