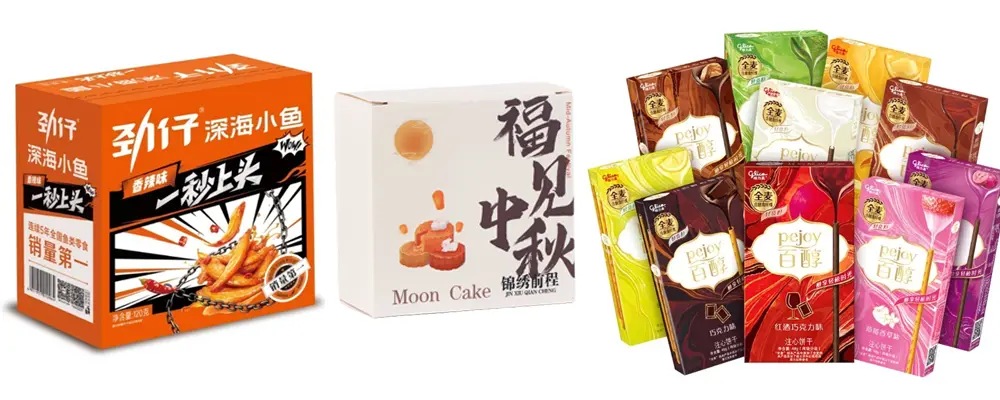

Sample box
Applications
The Automatic Box Packing Machine is widely used for secondary packaging of various bakery and snack products into cartons or small boxes.
Biscuit & Wafer Products:
Wafer rolls, wafer biscuits, cookies, sandwich biscuits, crackers, and other baked snack products.
Confectionery Products:
Chocolate products, candy, sweet snacks, and other individually wrapped food products.
Bakery Products:
Egg yolk pastry, cakes, pastries, and other small bakery items requiring carton packaging.
The machine can be customized according to product dimensions, carton size, feeding method, and production capacity requirements.
Features
1.The PLC control system(Hechuan brand),frequency conversion speed regulation,and electrical
2.It adopts a human-machine interface operating system,parameter memory,and menu management.
3.lt includes automatic detection of empty packages.
4.It features mechanical overload automatic shutdown,fault display,alarm functions,and finished
5.It delivers stable performance and is easy to operate and understand.
Auxiliary Equipment
Date Coding Printer
Out-put Conveyor
Parameters
| Item | FT-150 |
| Cartoning speed | 80-150 Cartons/min |
| Carton Quality requirement | 250-450g/m² According to box dimensions |
| Carton Dimension range (L × W × H) | (110-300)mm × (80-200)mm × (30-80)mm Special size can be customized |
| Compressed air Working pressure | ≥ 0.6Mpa |
| Compressed air Air consumption | 60m³ |
| Power supply | 380V / 50Hz |
| Motor power | 6kW |
| Machine dimension (L × W × H) | 7200mm × 2235mm × 2330mm |
| Machine weight | 2000-2500kg |
PLAN YOUR PROJECT
Tell us what you need to pack.
Share your product, bag type, filling weight and target output. We’ll help you identify a suitable configuration.
