parameters
| Model | FT-8200 |
| Packaging Materials | 3-side sealed pouch, 4-side sealed pouch, stand-up pouch, handbag pouch, spout pouch, zipper pouch, composite pouch, etc. |
| Pouch Size | Width：70-200mm，Lenght：≤350mm |
| Filling Range | 10g-1kg |
| Packing Speed | 30-60Pouches/minspecific value depends on measuring equipment and materials. |
| ：Average Weighing Accuracy | ≤ ±0.5-1%，specific value depends on measuring equipment and materials. |
| Total Power | 4.5KW 380V 50/60HZ |
| Overall Dimension | 1900mm X 1300mm X 1500mm（Length*Width*Height) |
Applications
This Compressed Towel Premade Pouch Packing Machine is designed for compressed disposable products requiring automatic feeding, multi-piece filling, air exhaust, and reliable pouch sealing.
Compressed Towels
Compressed towels, coin towels, tablet towels, compressed bath towels, travel towels, and other compact disposable towel products.
Facial & Cleansing Products
Compressed facial towels, cleansing wipes, makeup remover cotton, facial cleansing cotton, and other disposable personal-care products.
Travel & Hotel Supplies
Disposable hotel towels, travel facial wipes, compressed cotton products, guest amenities, and other individually or multi-piece packed hospitality supplies.
Personal Care Products
Foot bath cotton, disposable cotton pads, compressed cleansing products, and other dry personal-care items suitable for premade pouch packaging.
The feeding and pouch packaging system can be configured according to product diameter, thickness, shape, quantity per pouch, pouch dimensions, and required production capacity.
Video
WORKING STEPS
Bag Picking → Bag Conveying → Bag Opening → Multi-head Weighing Batch Feeding → Multiple Compressed Towels Filling → Material Leveling → Exhaust(Vacuum) → First Heat Sealing → Second Heat Sealing → Finished Product Output
AUXILIARY Equipment
- Multihead combination weigher Finished conveyorAuger
Z-type bucket elevator infeed conveyor
- Vibration Feeder
Multi-heads Weigher - Supporting Platform
FEATURES

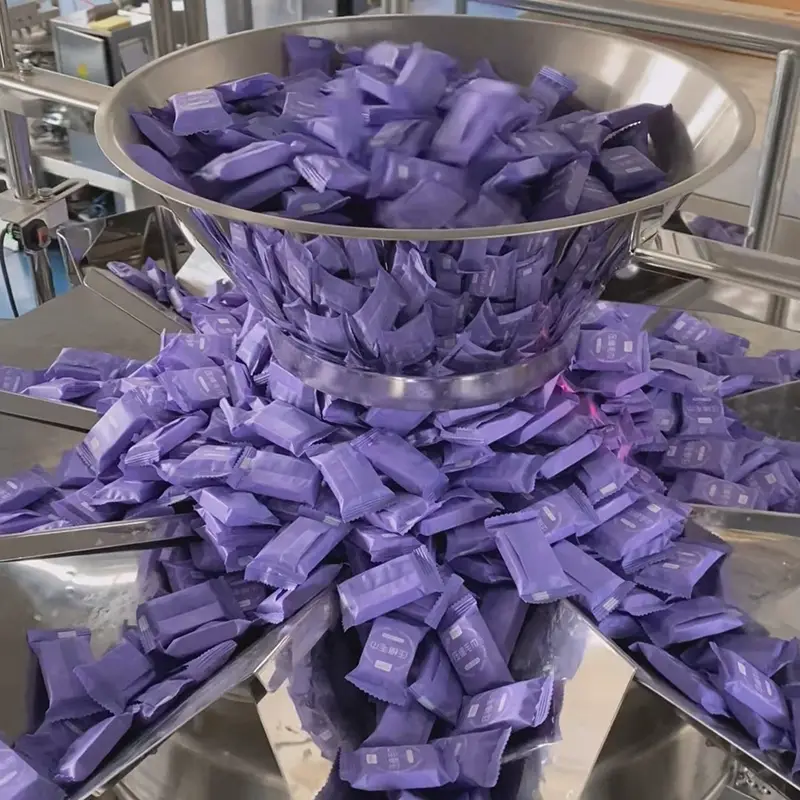

Automatic Compressed Towel Feeding
The feeding system automatically transfers compressed towels or cotton products to the packaging machine, reducing manual product loading and improving packaging efficiency.
Multi-Piece Counting & Filling
Supports controlled batch feeding of multiple compressed towels into one pouch according to the required package quantity, making it suitable for both single-product and multi-piece packaging configurations.

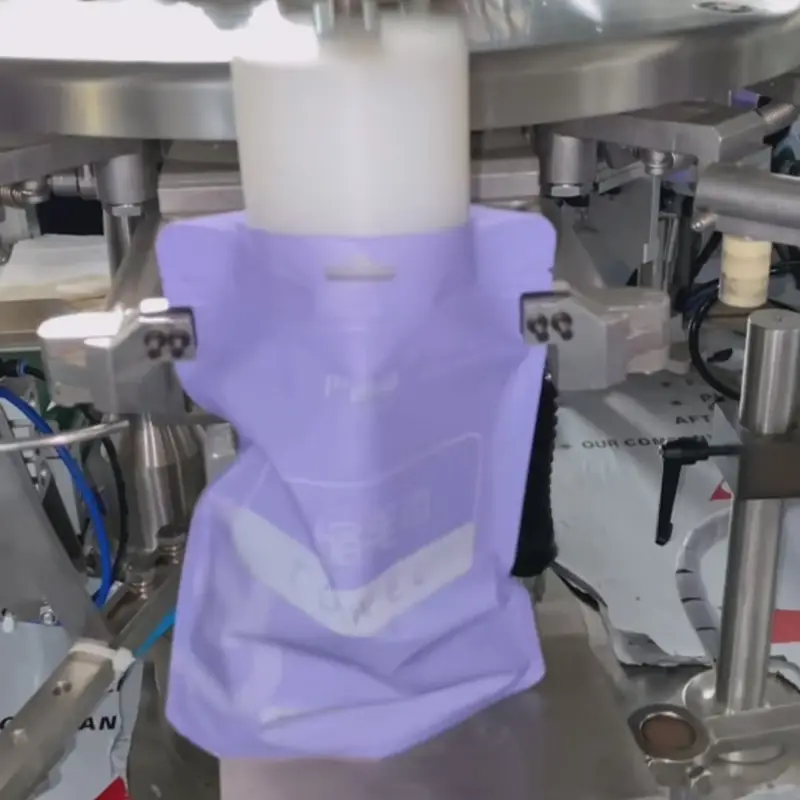

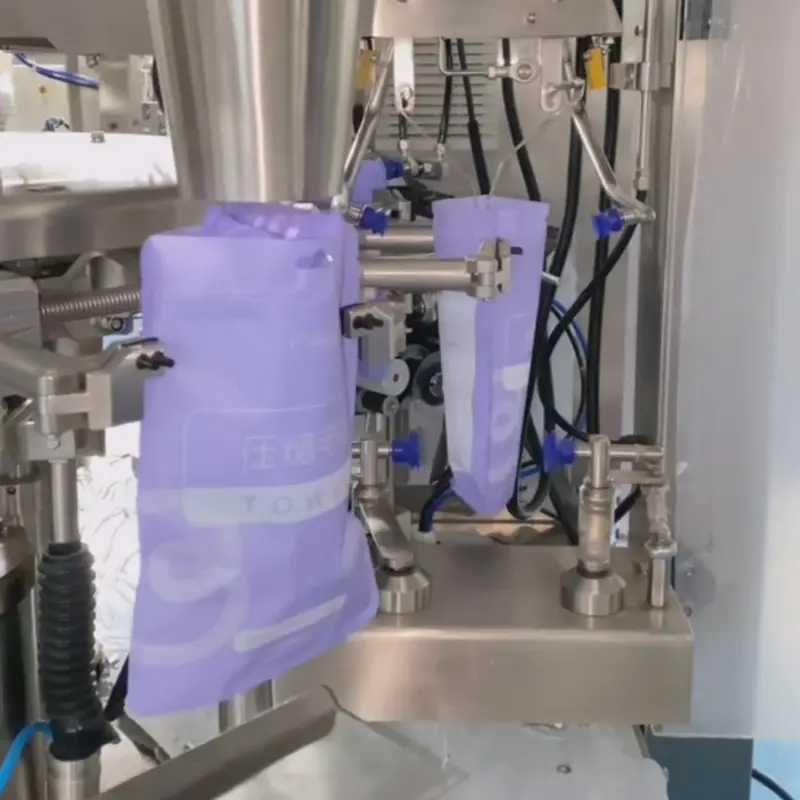

Rotary Premade Pouch Packaging
Automatically completes pouch picking, conveying, opening, product filling, sealing, and finished-pouch discharge in a continuous rotary packaging process.
Material Leveling System
The product leveling mechanism helps arrange compressed towels properly inside the pouch before sealing, improving finished-package appearance and sealing stability.
Air Exhaust / Vacuum Function
Removes excess air from the pouch before final sealing to create a more compact finished package and reduce unnecessary package volume.
Double Heat Sealing
Two-stage heat sealing provides reliable pouch closure and consistent sealing performance for compatible laminated premade pouch materials.
No Pouch Opening – No Filling
The detection system prevents product filling when a pouch is missing or not properly opened, helping reduce product loss and unnecessary pouch waste.
Multiple Premade Pouch Formats
Compatible with three-side-seal pouches, four-side-seal pouches, stand-up pouches, zipper pouches, composite pouches, and other suitable premade pouch formats according to machine configuration.
