Video
Sample bags
Applications
The Horizontal Premade Pouch Powder Packing Machine is suitable for automatic packaging of various powder products into stand-up pouches and premade bags.
Nutrition & Health Products:
Pea protein powder, plant protein powder, nutritional powder, collagen powder, chia powder, and dietary supplements.
Food Powder Products:
Milk powder, coffee powder, cocoa powder, seasoning powder, spice powder, flour, and baking ingredients.
Beverage Powder Products:
Instant drink powder, protein shake powder, functional beverage mixes, and other powdered drinks.
Other Fine Powders:
Customized powder materials requiring accurate filling and hygienic pouch packaging.
The machine can be configured according to powder characteristics, filling weight, pouch size, dust control requirements, and production capacity.
Features
1. Automatic horizontal premade stand-up pouch powder packing machine, specially developed for quantitative packaging of powder materials, with stable running and high metering precision.
2. Matched with screw powder feeding dosing device, realize accurate quantitative filling for all kinds of fine powder, effectively avoid powder flying and material waste.
3. Complete automatic workflow: bag feeding, bag opening, vacuum inflation, powder filling, sealing, finished bag discharging, greatly saving labor cost.
4. Widely compatible with multiple prefabricated pouch styles: stand-up pouch, zipper pouch, spout pouch, aluminum foil pouch, kraft paper pouch and customized bags.
5. Adopts mature PLC intelligent control system + touch screen operation panel, parameter modification simple and intuitive, easy for workers to operate.
6. Main machine frame and material contact parts adopt food grade 304 stainless steel, comply with food hygiene production standard, easy to clean and maintain.
7. Equipped with dust-proof and anti-leakage structure, effectively solve powder leakage problem during filling, keep workshop clean.
Auxiliary Equipment
Automatic Horizontal Premade Stand Up Pouch Powder Packing Machine

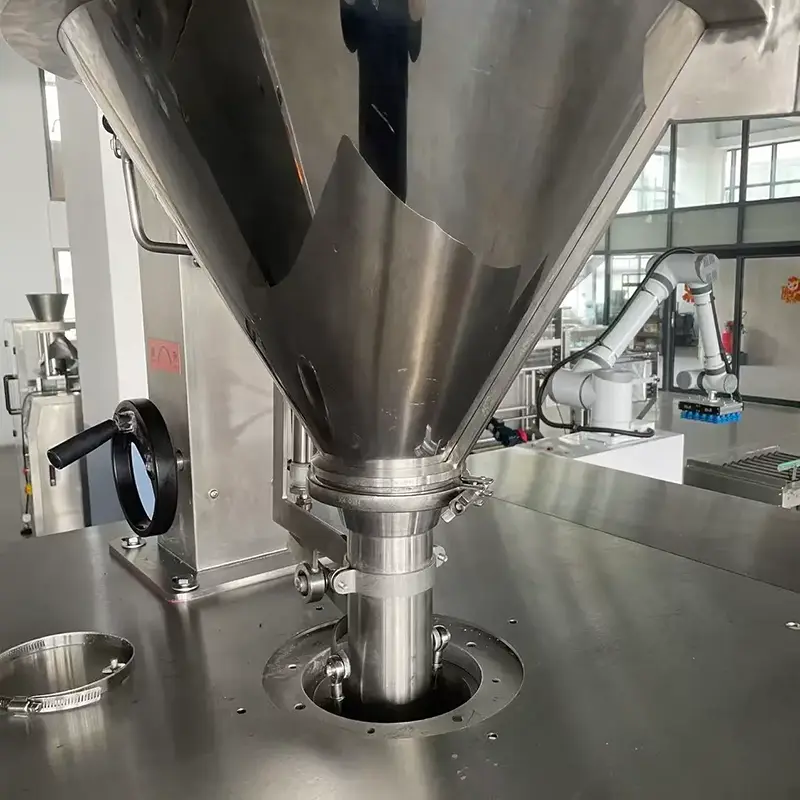

Powder Screw Feeding Dosing Machine
Finished Product Output Conveyor
Dust Collection Device
Parameters
| Model | FT-H85 | FT-H110 | FT-H150 | FT-H200 | FT-H350 | FT-H450 |
| Filling heads | 1/2 | 3 | 4 | |||
| Speed | 20-60 | 30-80 | 30-90 | 25-45 | 30-110 | 30-140 |
| Voltage | 380V | 380V | 380V | 380V | 380V50/60Hz | 380V50/60Hz |
| Dimensions | 2150*1350*1300 | 2600*2500*1680 | 2600*2500*1680 | 1800*1200*1500 | 2600*2500*1680 | 2600*2500*1680 |
| Weight | 650kg | 700kg | 700kg | 750kg | 850kg | 950kg |
| Material | 304stainless steel | |||||
| Power | 5kw | 5kw | 5kw | 5kw | 5kw | 6kw |
| Bag size | W:90-210mmL:110-330mm | W:70-100mmL:110-230mm | W:90-140mmL:100-250mm | W:80-210mmL:100-300mm | W:70-100mmL:110-230mm | W:90-140mmL:100-250mm |
| Bag type | Shaped bags, self-supporting bags, four-sided sealing bags, tote bags, paper bags and other prefabricated bags | |||||
PLAN YOUR PROJECT
Tell us what you need to pack.
Share your product, bag type, filling weight and target output. We’ll help you identify a suitable configuration.
