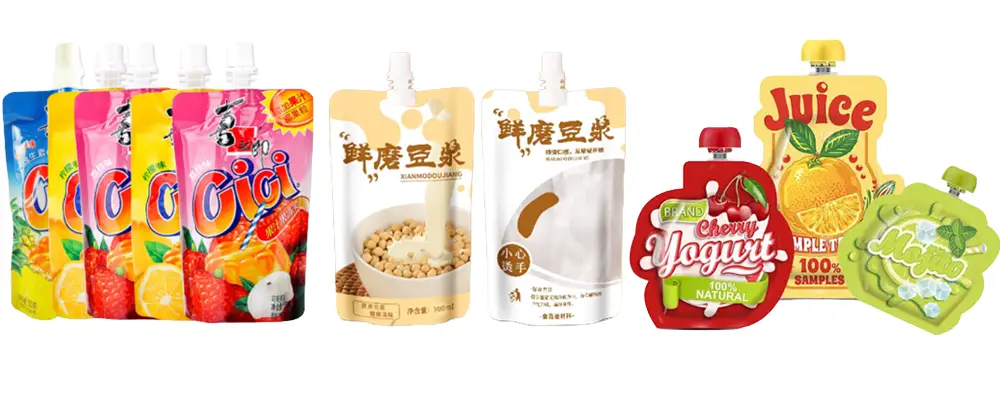

Sample bags
Applications
The Stand Up Pouch Filling and Capping Machine is suitable for a wide range of liquid and semi-liquid products packed in spout stand-up pouches.
Beverage Products:
Healthy drinks, fruit juice, juice concentrates, yogurt drinks, milk beverages, nutritional drinks, and functional beverages.
Fruit Products:
Fruit puree, fruit jam, fruit sauce, jelly drinks, and other processed fruit products.
Sweet & Viscous Products:
Honey, syrup, chocolate sauce, caramel sauce, and similar liquid products.
Other Liquid Foods:
Sauces, condiments, and other liquid or semi-liquid products requiring convenient spout pouch packaging.
The filling system can be customized according to product viscosity, filling volume, pouch size, and production capacity requirements.
Features
1.The PLC control system and electrical components are all sourced from internationally renowned brands.
2.It adopts a human-machine interface operating system, parameter memory, and menu management.
3.Rotary station design with stable indexing, convenient for pouch positioning and processing.
4.It features mechanical overload automatic shutdown, fault display, alarm functions, and finished product counting.
5.It delivers stable performance and is easy to operate and understand.
6.It enables recipe saving with short specification switching time for different sizes of spout pouches.
Auxiliary Equipment
4 Heads Rotary Spout Pouch Filling Capping Machine
Liquid Material Storage Tank
Material Feed Pipeline
Finished Pouch Output Conveyor
Pouch Loading Auxiliary Platform
Parameters
| Machine Model | Stand-up Pouch Filling capping machine |
| Package Product | Liquid, Paste |
| Filling Pump | Gear Pump (Material contact part: 316 Stainless Steel) |
| Filling Specification | 300–5000 mL |
| Hopper Capacity | 150 L (Material contact part: 304 Stainless Steel) |
| Center Spout Pouch Size | / |
| Corner Spout Pouch Size | Width: 60–440 mm, Height: 60–400 mm |
| Production Speed | 40–65 bags/min (Depends on filling volume, viscosity, and pouch standards) |
| Voltage & Frequency | 220V, 50Hz |
| Total Power | 6 kW |
| Net Machine Weight | Approx. 1000 KG |
| Aluminum Parts | Aluminum disk with hard anodizing treatment |
| Machine Frame Material | 304 Stainless Steel |
| Filling Head Material Contact | 304 Stainless Steel |
| Turntable Principle | Cam Divider |
| Machine Dimensions (mm) | Approx. L 2700 × W 2200 × H 2100 |
| Working Principle | Manual bag loading → Automatic pouch feeding → Automatic filling → Automatic cap dropping → Automatic capping → Automatic bag discharging |
