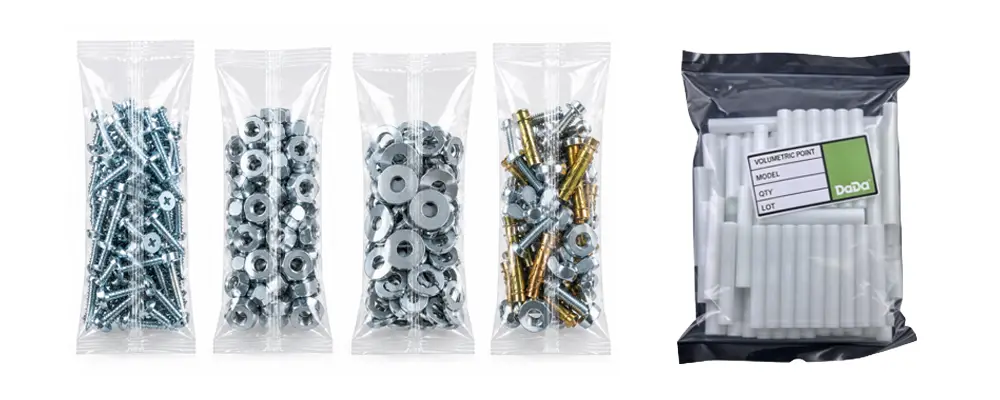

Sample bags
Applications
The Automatic Hardware Parts Counting and Packing Machine is designed to count and pack small hardware components into individual bags. It helps streamline packaging operations for hardware suppliers, furniture manufacturers and fastener producers. Depending on the machine configuration, it can handle different types and quantities of small parts.
Furniture Hardware:
Suitable for compatible furniture connectors, corner brackets, mounting plates and other small hardware components used in furniture assembly.
Screws, Nuts and Bolts:
Designed for counting and packing compatible screws, nuts, bolts and other threaded fasteners, helping reduce manual counting and improve packaging efficiency.
Fasteners and Small Metal Parts:
Suitable for selected fasteners, washers, pins and other small metal components, subject to product size and machine configuration.
Furniture Assembly Accessories:
Can be used for compatible cam locks, dowels, hinges, connecting fittings and other furniture installation accessories.
Hardware Kits:
Depending on the counting system and machine setup, selected combinations of hardware components can be packed into individual bags for furniture assembly kits and accessory sets.
The feeding, counting and packing systems can be configured according to the size, shape and quantity of the products. After counting, the parts are transferred to the packing unit for bag filling and sealing, depending on the machine configuration.
Features
- Automatic Counting System: Counts compatible hardware parts according to preset quantities.
- Wide Application Range: Handles suitable furniture fittings, screws, nuts, bolts and other small hardware components, subject to product testing.
- Automatic Feeding: Transfers compatible parts into the counting and packing system.
- Consistent Counting: Helps maintain accurate quantities in each package when properly configured.
- Automatic Bag Packing: Packs counted hardware components into individual bags.
- Bag Sealing System: Seals filled bags to complete the packaging process.
- PLC Control System: Supports machine operation and parameter adjustment, depending on the configuration.
- Easy Operation: Simplifies routine operation and product setting changes.
- Flexible Packaging Settings: Allows adjustments to counting quantities and bag specifications within the machine's operating range.
Auxiliary Equipment
- Automatic Counting System
- Vibratory Bowl Feeder
- Linear Feeding Conveyor
- Finished Product Conveyor
Parameters
| Bag shape | Back seal |
| Incision form | Tooth incision |
| Roll film width | Max.320mm (customizable) |
| Film thickness | 5-13C (recommended 6-8C) |
| Bag length | 80-170mm (touch screen adjustment) |
| Bag making width | 60-150mm (replace the bag maker) |
| Bag material | OPP/CPP/NILO composite, etc. |
| Edge width | 8-10mm (fine adjustment) |
| Power Specifications | 220V, 50/60HZ |
| Bag making method | Elephant Trunk |
| Pull film method | Stepper motor control double wheels to pull film |
| speed | 1-50 bags/minute (according to the actual material condition) |
| Packing capacity | Max.W150*L170mm |
| power | 1.1kw (according to the number of disks and user needs) |
| Outer packaging | Wooden box |
| equipment weight | 500KG |
| Equipment size | Length 900*Width 800*Height 1550 mm (customized) |
| Measurement method | Fiber metering |
